CI 292-3 FM Extended Band Bent Whip Antenna | 136-174 MHz & 138-174 MHz
COMANT INDUSTRIES
EDMO#: CI-292-3
MFR#: CI 292-3
Description

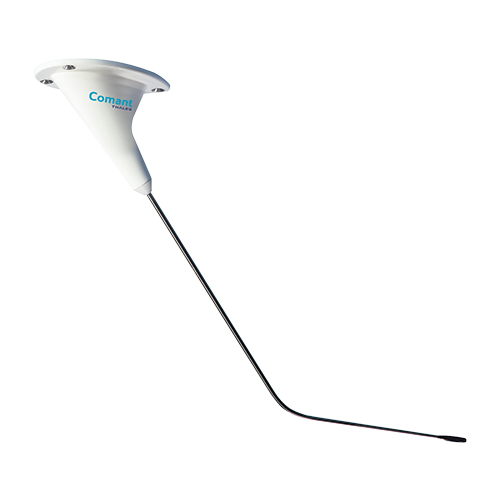

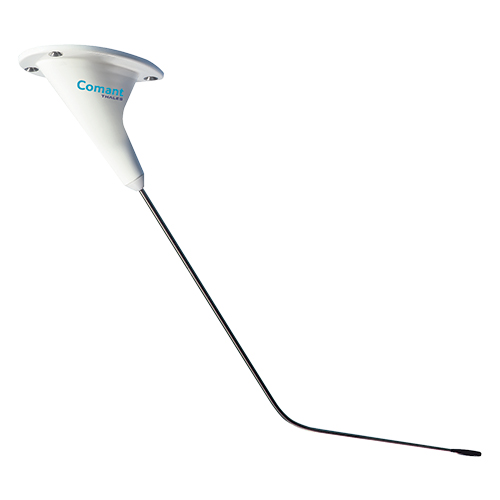

The CI 292-3 FM Extended Band Bent Whip Antenna was designed to provide 2.5:1 VSWR or better over a bandwidth of 138-174 MHz. It features a high-strength die-cast 3-hole aluminum base. The radiating element is a bent-whip tapered stainless steel rod suitable for bottom mounting.
The CI-292-3 has been re-tested and upgraded to the new RTCA DO-160B environmental requirements.
Features
- Die-cast 3-hole mount aluminum base
- 136-174 MHz & 138-174 MHz bandwidth frequency
- Tapered stainless steel rod
- Bottom Mounting
- FAA TSO C37c (Class 1), C38c
- RTCA Environmental DO-160B
Specifications
Weight:
0.60 lbs Maximum
Height:
9.5 inches
Frequency:
136 MHz to 174 MHz
138 MHz to 174 MHz
VSWR:
3.0:1 Maximum
Antenna Gain:
2.5dB Minimum at Beam Max
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance:
50 Ohms
Power:
50 Watts
Material:
Die Cast housing / Stainless whip
Finish:
White Polyurethane Enamel
Connector:
BNC (female)
Temperature:
-55 C to +70 C
Altitude:
50,000 ft
Product Codes
Mfr Part No :
CI 292-3
ECCN :
7A994
NSN :
5985-01-465-2677
PROAPP :
PT2316NM
RTCA :
Environmental: DO-160B, MOPS: DO-186A
SCHEDULE B CODE :
8529.10.4000
TSO :
C37c,C38c
