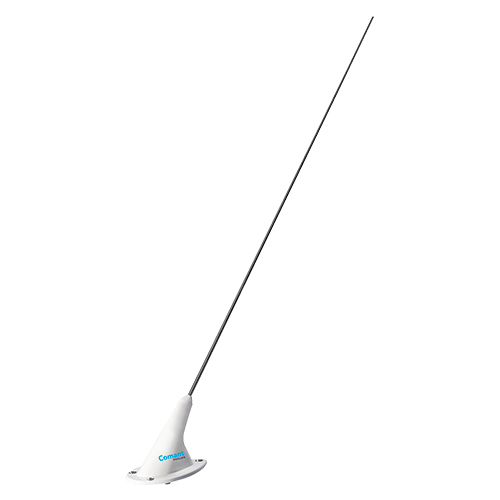

CI 292-4 FM Communications Whip Antenna | 136–174 MHz & 138–174 MHz, 50 Ω, BNC Female Connector

Product Description

The CI 292-4 antenna (EDMO# CI-292-4) is a three-through-hole-mount style FM communications bare whip antenna with a BNC port. This antenna features a straight tapered stainless steel radiator and a narrow mounting pattern. It is designed for use over the public service FM extended frequency 2-meter band and is suitable for top mounting on light fixed-wing single-engine and multi-engine aircraft.

Specifications

• Weight:
  0.60 lb
• Height:
  14.5 in
• Frequency:
  136–174 MHz; 138–174 MHz
• VSWR:
  3.0:1
• Gain:
  2.5 dB
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance RF:
  50 Ω
• Power RF:
  50 W
• Material:
  Die Cast Housing / Stainless Steel Whip
• Finish:
  White Polyurethane Enamel
• Connector:
  BNC Female
• Temperature:
  -55°C to 70°C
• Altitude:
  50,000 ft.
• Airspeed:
  250 KTAS
• FAA TSO:
  C37c (Class 1), C38c
• RTCA Environmental:
  DO-160B
• Gasket:
  C29205

Product Codes

• Mfr Part No
  CI 292-4
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37c,C38c

Documentation

• CI 292-4 Data Sheet
• CI 292-4 Product Drawing
