CI 401-460 ComDat Non-WAAS GPS/XM Weather Antenna | 1575.42 MHz, 2332.5–2345.0 MHz, 50 Ω, TNC Female Connectors

Product Description

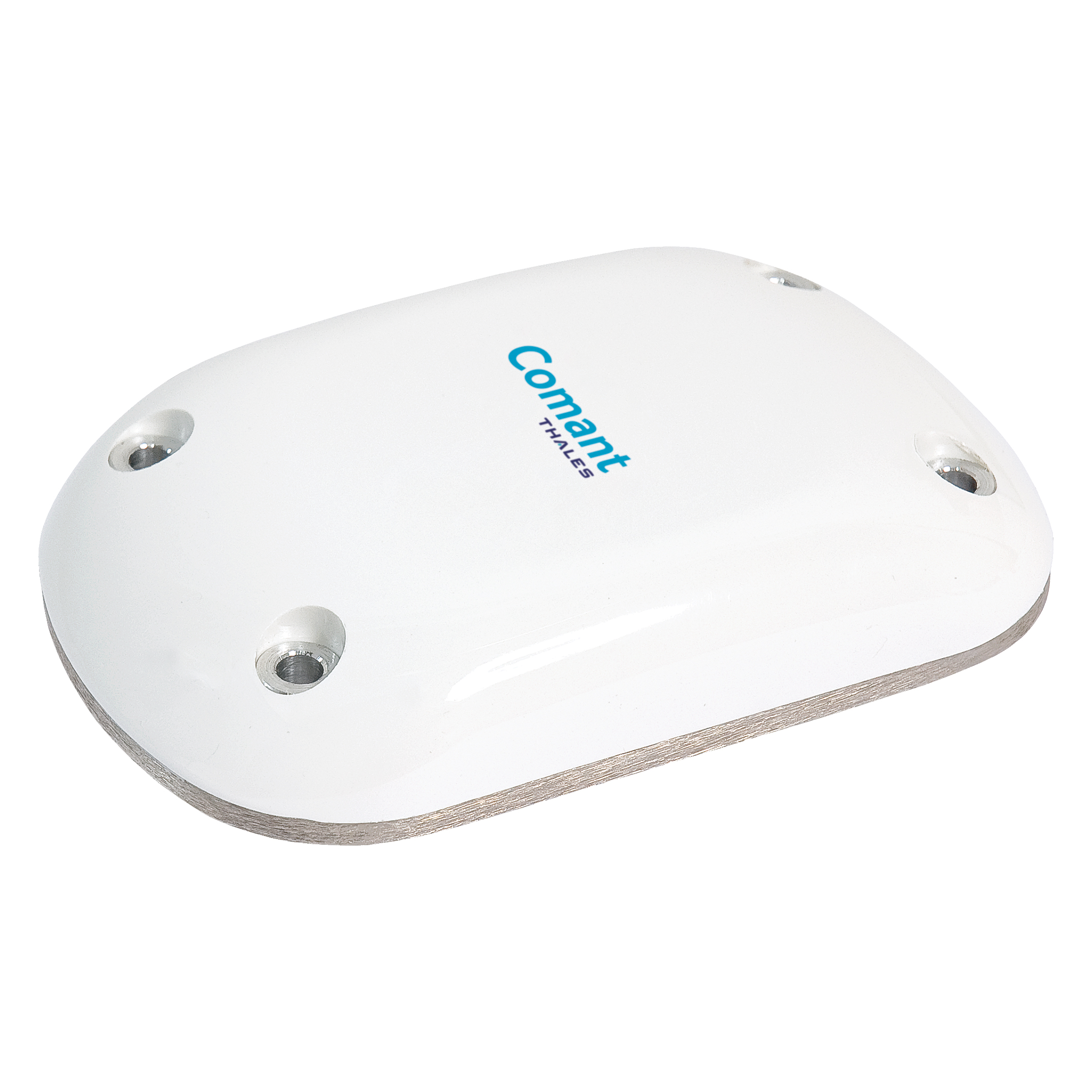

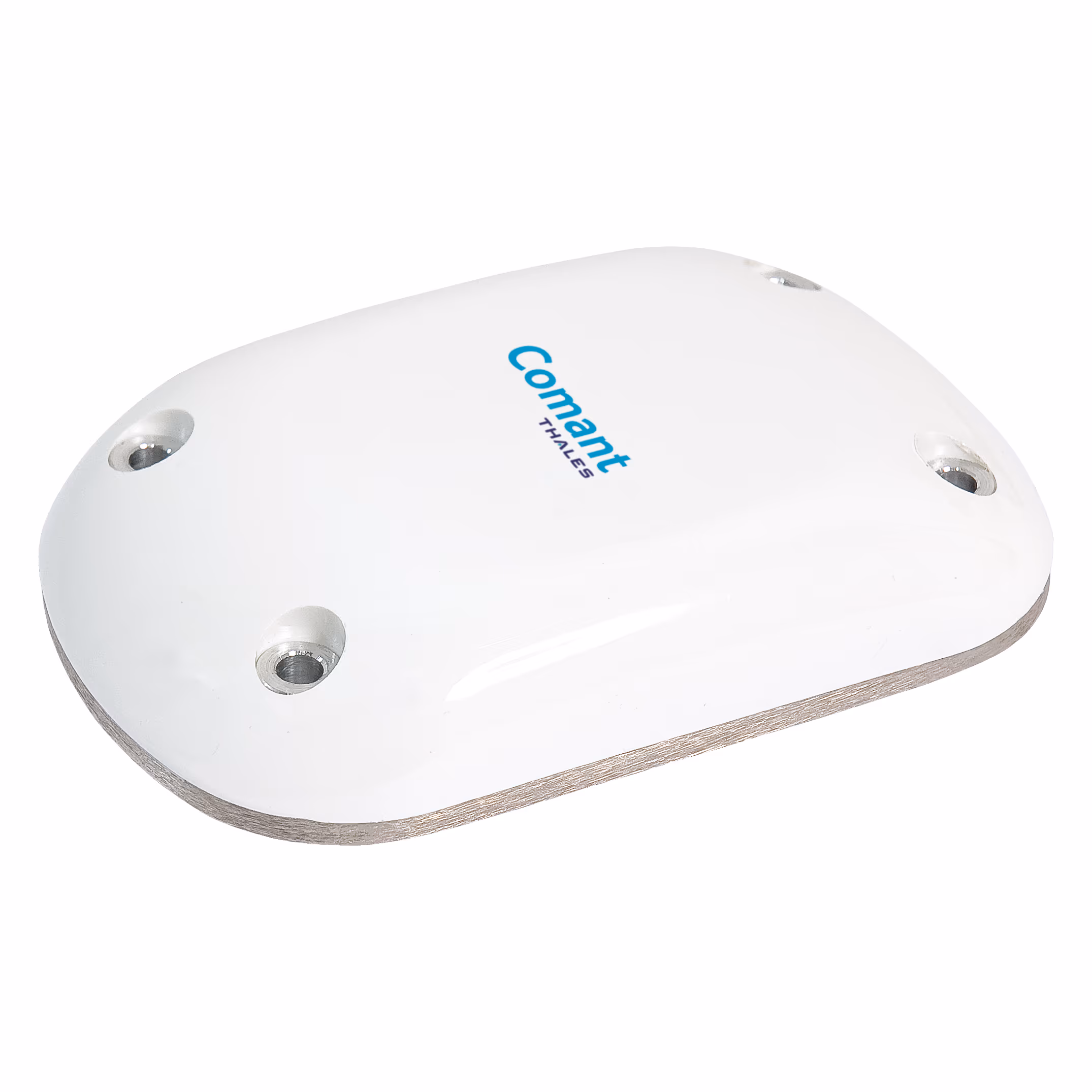

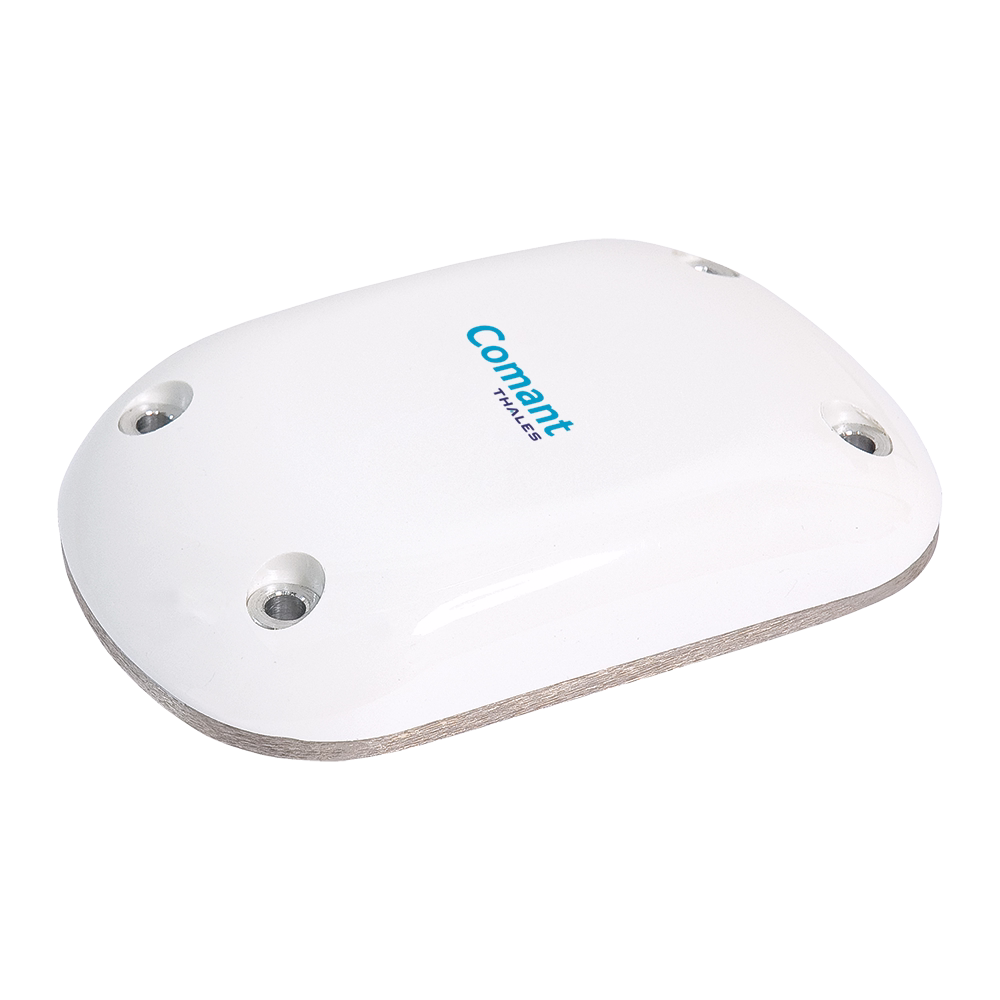

The CI 401-460 ComDat antenna (EDMO# CI-401-460) is a four-through-hole-mount style GPS non-WAAS / XM Weather & Radio rectangle antenna (ARINC 743A footprint) with dual TNC ports. This antenna covers both GPS and XM frequencies and is GPS C144 certified for class 1 LNAV approaches (lateral navigation only). It is designed to be used with 27 dB gain GPS panel mount systems and is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jet.

Specifications

• Weight:
  6.5 oz
• Finish:
  Glossy White
• Connector:
  GPS: TNC Blue XM: TNC Red
• GPS PREAMPLIFIER:
• Frequency:
  1575.42 MHz
• VSWR:
  1.5:1
• Polarization:
  RHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  27.0–30.5 dB
• DC Voltage:
  4–24 VDC
• DC Current:
  25–40 mA
• Noise Figure:
  3.8 dB
• Selectivity:
  -35 dB (min) @ Satcom Frequency
• XM WEATHER DATA:
• Frequency:
  2332.5–2345.0 MHz
• VSWR:
  1.5:1
• Polarization:
  LHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  26–30 dB
• DC Voltage:
  4 VDC (min), 4.7 VDC (typical), 5.5 VDC (max)
• DC Current:
  25 mA (min), 45 mA (typical), 55 mA (max)
• Noise Figure:
  2.7 dB
• FAA TSO:
  C144
• RTCA Environmental:
  DO-160D

Product Codes

• Mfr Part No
  CI 401-460
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C144

Documentation

• CI 401-460 Data Sheet
• CI 401-460 Product Drawing
