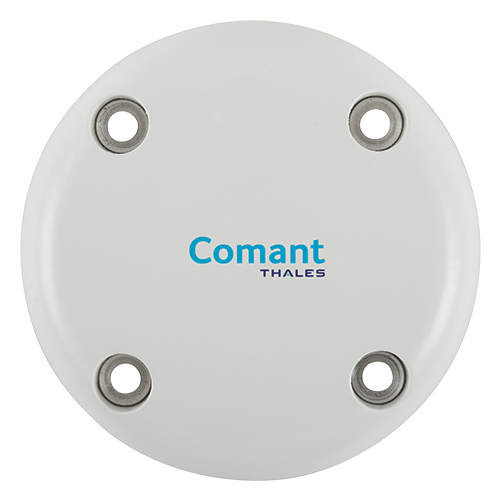

CI 408-20 Non-WAAS GPS Antenna | 1575.42 MHz, 50 Ω, 27 dB Gain, TNC Female Connector

Product Description

The CI 408-20 antenna (EDMO# CI-408-20) four-through-hole-mount style non-WAAS GPS round antenna with a TNC port. This antenna is GPS C144 certified for class 1 LNAV approaches (lateral navigation only) and is designed to be used with 27 dB gain GPS panel mount systems. It is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

Specifications

• Weight:
  0.45 lb
• Frequency:
  1575.42 MHz
• VSWR:
  1.5:1
• Polarization:
  RHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Power Handling:
  6.5 W
• Lightning Protection:
  DC Grounded
• Gain:
  +3 dBic @ Zenith
• Finish:
  White Polyurethane Enamel
• Connector:
  TNC Female
• FAA TSO:
  C144
• RTCA Environmental:
  DO-160G

Product Codes

• Mfr Part No
  CI 408-20
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C-144

Documentation

• CI 408-20 Data Sheet
• CI 408-20 Product Drawing
