CI 420-1 XM Weather & Radio Antenna | 2332.5–2345.0 MHz, 50 Ω, 28 dB Gain, SMA Female Connector

Product Description

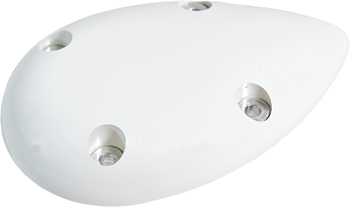

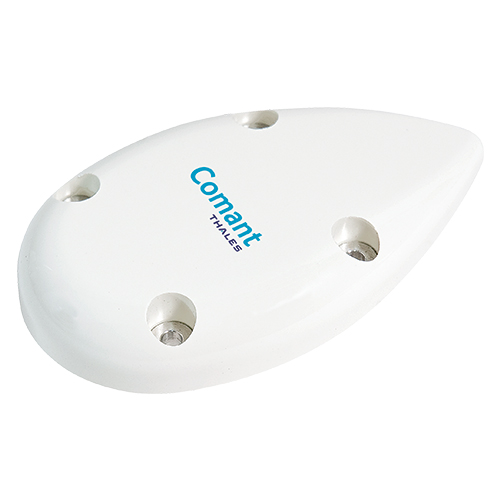

The CI 420-1 antenna (EDMO# CI-420-1) is a four-through-hole-mount style XM weather & radio teardrop antenna with an SMA port. This antenna is designed to operate with XM systems such as the Heads Up XM weather data systems and is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

Specifications

• Weight:
  4.2 oz
• Frequency:
  2332.5–2345.0 MHz
• VSWR:
  1.5:1
• Polarization:
  LHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  26–30 dB
• DC Voltage:
  4.7 VDC (typical), 5.5 VDC (max)
• DC Current:
  45 mA (typical), 55 mA (max)
• Noise Figure:
  1.1 dB
• Finish:
  White Polyurethane Enamel
• Connector:
  SMA Female
• FAA TSO:
  PMA
• RTCA Environmental:
  DO-160D

Product Codes

• Mfr Part No
  CI 420-1
• ECCN
  7A994
• NON-WARRANTY
  NON-WARRANTY ITEM! NCNR
• PMA
  FAA/PMA
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 420-1 Data Sheet
• CI 420-1 Product Drawing
