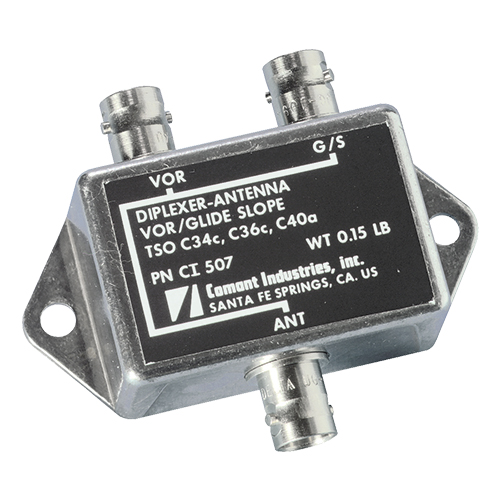

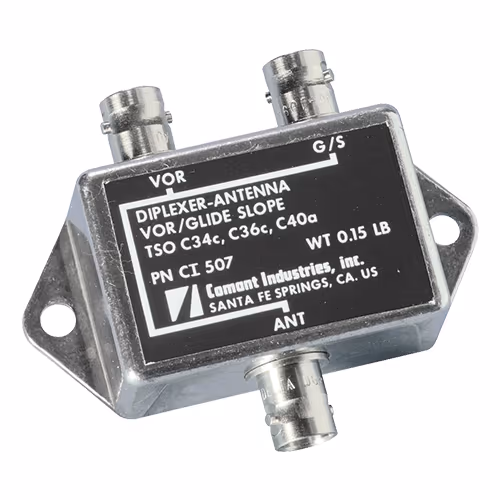

CI 507-2 VOR/LOC/GS Signal Diplexer | 108–118 MHz & 329–335 MHz, 50 Ω, TNC Female Connectors

Product Description

The CI 507-2 VOR/LOC/GS signal diplexer (EDMO# CI-507-2) is a two through hole diplexer with TNC ports. This coupler converts a single VOR/LOC/GS antenna signal into one VOR/LOC and one GS signal output and is designed for avionics units that require a split NAV signal. It is suitable for internal aircraft mounting.

Specifications

• Frequency:
  108–118 MHz & 329–335 MHz
• VSWR:
  1.5:1, maximum
• Isolation:
  20 dB, maximum
• Insertion Loss:
  0.5 dB, maximum
• Impedance:
  50Ω
• Weight:
  0.20 lb, maximum
• Height:
  0.88 in, maximum
• Material:
  Die Cast Aluminum
• Finish:
  Aluminum
• Connectors:
  TNC
• Environmental:
  N/A Internal Mount
• Federal Specifications:
  FAA TSO C34c, C36c, C40a

Product Codes

• Mfr Part No
  CI 507-2
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 507 Data Sheet
• CI 507 Product Drawing
