CIX300 Series Switch and Cable Assembly / Bose A20

Product Description

This CIX300 series switch and cable assembly (CIX312X/3-) is wired for a Bose A20 or Bose X headset and is black with a large clothing clip, has a 6-contact lemo socket, a momentary-lock ICS key slide switch, and a three foot straight cable with a 9-contact Fischer (S 104 A055-130+) plug and strain relief clamp (E3 104.3/6.7+B).

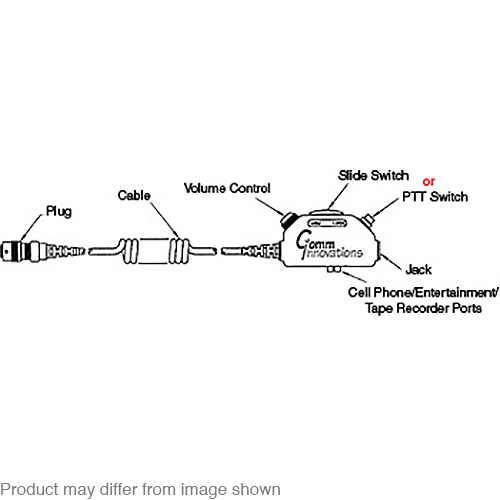

CIX series switch and cable assemblies can be assembled, repaired, or reconfigured without a solder gun. All major components (cable, jack, volume control, slide switch, and PTT switch) plug into the interconnect module which is fixed to the rear half of the switch case. The assembly is completed by the distribution header which provides switch and connection functions.

• Black case with large clothing clip
• 6-pin Lemo socket for Bose A20 and Bose X headsets
• Momentary-lock ICS key slide switch with center position as ICS interrupt
• 3 foot straight cable with 9-contact Fischer (S 104 A055-130+) plug with strain relief clamp (E3 104.3/6.7+B)

Product Codes

• Mfr Part No
  CIX312X/3-PF9
• SCHEDULE B CODE
  8525.60.1025
