CM-S-389T MIL-DTL-26500 and 83723 Series III Adapter Tool Set | Receptacles, Shell Sizes 8–28

DANIELS MFG

Call For Pricing

Available to order

EDMO # CM-S-837RB

MFR Part # CM-S-837RB

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The central element of the DMC Beta connector accessory tool product line is the adapter tool. This unique device is configured in such a manner as to mate perfectly with the corresponding circular connector keying pattern.

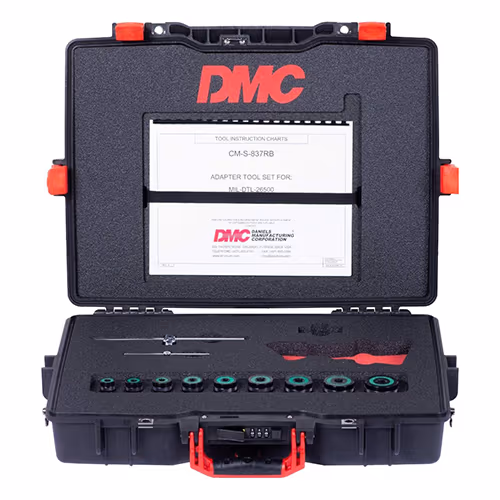

This Adapter Tool Set (EDMO# CM-S-837RB) is for MIL-DTL-26500 and MIL-DTL-83723 Series 3 receptacles. There are 9 adapter tools in this set and it covers shell sizes 8–24.

Features

For MIL-DTL-26500 and MIL-DTL-83723 Series 3 receptacles
Includes 9 adapter tools, shell sizes 8–24

Specifications

Weight:

6.1 lbs
Connector Type:

Receptacles
Adapter Shell Sizes:

8–24
Adapter Dimensions:

8: 1.500 x 0.752 x 0.812 10: 1.500 x 0.875 x 0.937 12: 1.500 x 1.000 x 1.062 14: 1.50 x 1.065 x 1.125 16: 1.50 x 1.190 x 1.250 18: 1.50 x 1.315 x 1.375 20: 1.50 x 1.440 x 1.500 22: 1.50 x 1.565 x 1.625 24: 1.50 x 1.690 x 1.750
Adapter Driver Dimensions:

0.25 in (8, 10, 12, 14, 16); 0.375 in (18, 20, 22, 24)
Adapter Keying Positions:

All Keying Positions
