CS1104 Broadband Signal Analyzer | Scout

VIAVI

Call For Pricing

Available to order

EDMO # CS1104

MFR Part # 111932

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

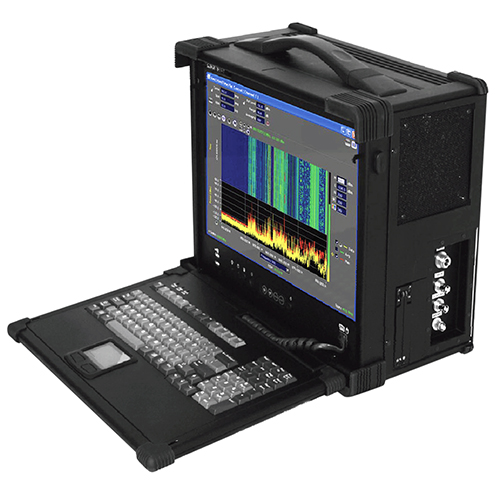

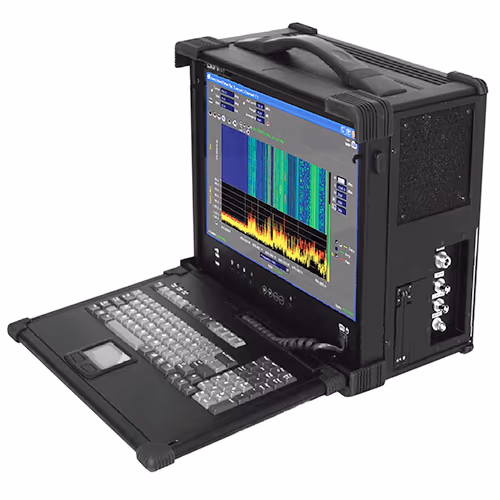

The portable Scout CS1104 Broadband Signal Analyzer instrument is designed to find and solve the toughest RF issues by combining real-time and off-line signal capabilities to address multiple test applications. Such applications include communications, radar, satellite, OTA testing, electromagnetic environments (EME), drive (mobile collection).

Features

Tunable RF downconverter convert RF signals from RF to baseband IF
A/D converter digitizes baseband signals
Digital tuner focuses on signal of interest and reduce unnecessary data
Processes raw digitized samples with various algorithms such as advanced triggering, filtering, scaling, statistics
Stores digitized signal for analysis or archiving
Computer controlled system for performing analysis, displaying results and writing data from RAM to storage (disk, USB device) for archive

Specifications

Weight:

40 lb (18 kg)
Dimensions:

13.6 x 17.01 x 9.57 in (345 x 432 x 234 cm)
Power Consumption:

160 VAC or 220 VAC 1.35 A rms @ 110 VAC (measured while operating)
Temperature:

-10°C to 55°C, operating -40°C to 65°C, storage
Humidity:

5% to 95% (non-condensing), storage
Frequency Range:

30 MHz to 6 GHz, tunable center RF frequency range
Tuning Resolution:

1 kHz
Frequency Accuracy:

Dependent on 10 MHz frequency accuracy
