D-150 Shielded Wire Splice | 18–16 AWG, Tin/Silver, 2-Conductors

TE CONNECTIVITY

Call For Pricing

Available to order

EDMO # D-150-0175

MFR Part # 727844-000

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

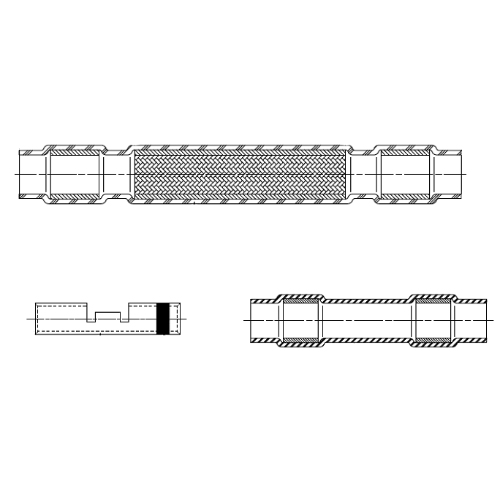

D-150 solder sleeve splices provide encapsulation, strain relief, insulation, and simple inspections for splicing together one or two wires per end. The one-piece design makes installation simple and cost effective.

This D-150 solder splice (EDMO# D-150-0175) will fit over 18 – 16 AWG cables with two tin- or silver-plated conductors. Colored blue.

Features

Provides environment resistant seal
One-to-one inline shielded splice
Compatible with twisted pair, trio and quad cables with nickel-plated conductors
135°C minimum wire insulation rating

Specifications

AWG wire range:

18 AWG – 16 AWG
Dimensions:

2.950 x 0.197 in (74.93 x 5 mm)
Insulation Material:

Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride
Color Code:

Blue
Solder Type:

Type Sn63 per ANSI J-STD-006
Flux Type:

Type ROM1 per ANSI J-STD-004
Crimp Splice:

tin-plated, copper alloy
Temperature Rating:

-55°C to 150°C
