D-150 Shielded Wire Splice | 22–20 AWG, Tin/Silver, 3–4 Conductors

TE CONNECTIVITY

Call For Pricing

Available to order

EDMO # D-150-0179

MFR Part # D-150-0179

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

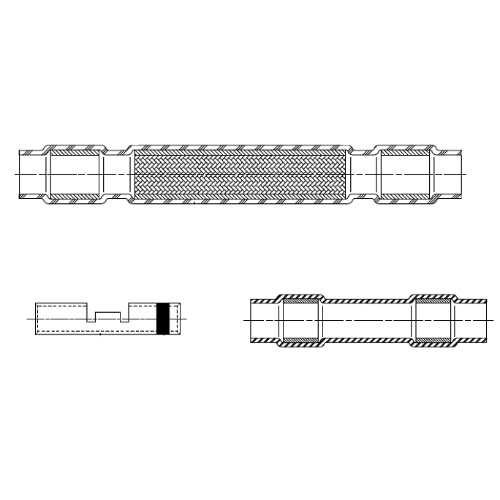

D-150 solder sleeve splices provide encapsulation, strain relief, insulation, and simple inspections for splicing together one or two wires per end. The one-piece design makes installation simple and cost effective.

This D-150 solder splice (EDMO# D-150-0179) will fit over 22 – 20 AWG cables with three or four tin- or silver-plated conductors. Colored Red.

Features

Provides environment resistant seal
One-to-one inline shielded splice
Compatible with twisted pair, trio and quad cables with nickel-plated conductors
135°C minimum wire insulation rating

Specifications

AWG wire range:

22 – 20 AWG
Dimensions:

4.170 x 0.197 in (105.92 x 5 mm)
Insulation Material:

Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride
Color Code:

Red
Solder Type:

Type Sn63 per ANSI J-STD-006
Flux Type:

Type ROM1 per ANSI J-STD-004
Crimp Splice:

Tin-plated, copper alloy
Temperature Rating:

-55°C to 150°C
