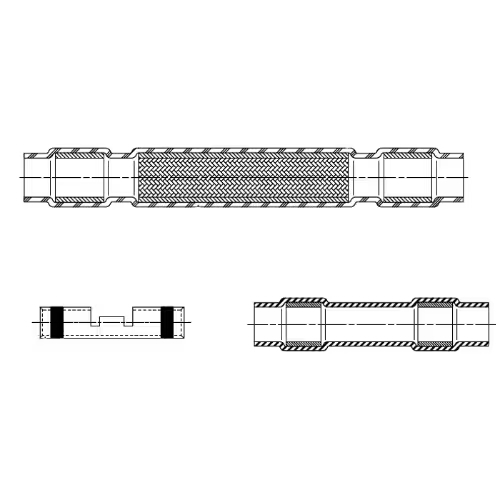

D-150 Shielded Wire Splice | 1.5mm - 0.5mm, Copper

D-150 Shielded Wire Splice | 1.5mm - 0.5mm, Copper
Call For Pricing
In stock
EDMO # D-150-0229
MFR Part # 638145-000
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

D-150 solder sleeve splices provide encapsulation, strain relief, insulation, and simple inspections for splicing together one or two wires per end. The one-piece design makes installation simple and cost effective.


This D-150 solder splice (EDMO# D-150-0229) will fit over 1.5mm - 0.5mm, copper alloy-plated wire connectors.



Features

  • Provides environment resistant seal
  • One-to-one inline shielded splice
  • Compatible with twisted pair, trio and quad cables with nickel-plated conductors
  • 135°C minimum wire insulation rating

Specifications

  • Insulation Material:
    Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride
  • Color Code:
    Yellow
  • Solder Type:
    Type Sn63 per ANSI J-STD-006
  • Flux Type:
    Type ROM1 per ANSI J-STD-004
  • Crimp Splice:
    Nickel-plated, copper alloy
  • Temperature Rating:
    -55°C to 150°C

Product Codes

  • Mfr Part No
    638145-000
  • SCHEDULE B CODE
    8536.90.4000
