D-150 Shielded Wire Splice | 18–16 AWG, Nickel, 3–4 Conductors

Product Description

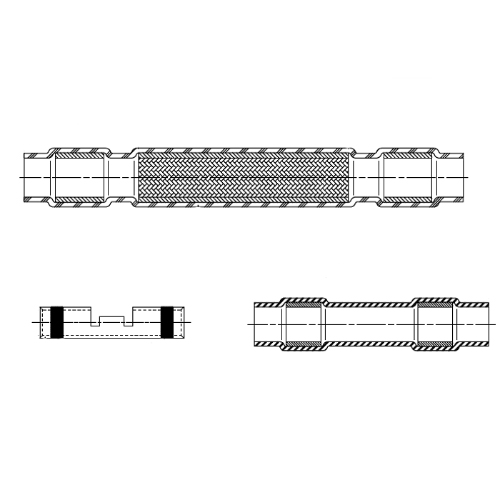

D-150 solder sleeve splices provide encapsulation, strain relief, insulation, and simple inspections for splicing together one or two wires per end. The one-piece design makes installation simple and cost effective.


This D-150 solder splice (EDMO# D-150-0237) will fit over 18 – 16 AWG cables with three four nickel-plated conductors. Colored blue.

Specifications

• AWG wire range:
  18 AWG – 16 AWG
• Dimensions:
  4.170 x 0.236 in (105.92 x 6 mm)
• Insulation Material:
  Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride
• Color Code:
  Blue
• Solder Type:
  Type Sn63 per ANSI J-STD-006
• Flux Type:
  Type ROM1 per ANSI J-STD-004
• Crimp Splice:
  Nickel-plated, copper alloy
• Temperature Rating:
  -55°C to 150°C

Product Codes

• Mfr Part No
  D-150-0237
• ANSI
  ANSI/ASQZ 1.4 AQL 2.5 LEVEL I
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000
