D-200 MiniSeal Crimp Splice | 20–16 AWG, Blue

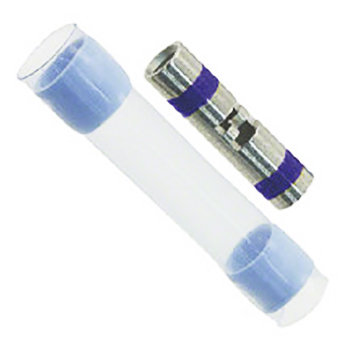

MINI-SEAL CRIMP SPLICE/Female, blue, Inside diameter: 2.79 mm X .64 mm. For use with 20-16 gauge wire.

TE CONNECTIVITY

Call For Pricing
Available to order
EDMO # D-200-83
MFR Part # D-200-83
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The D-200 MiniSeal crimp splices are immersion-resistant, in-line nickel-plated sealed crimp splices developed for the growing needs of high temperature applications up to 200C. These crimp splices are small, light, and environmentally resistant and meet SAE-AS81824/1 requirements.

This D-200 MiniSeal crimp splice (EDMO# D-200-83) is blue for use with 20-16 gauge wire.

Features

  • Provides an immersion-resistant in-line splice on 1:1 wires for wire ranges from 26 AWG to 12 AWG, nickel-plated conductors, and insulation rated for at least 135°C
  • Transparent heat-shrinkable insulation sleeve provides environmental protection and strain relief
  • Protects and seals RCW and BMS13-60 nickel-plated wires
  • Meets SAE-AS81824/1 requirements (modified for 200°C applications)
  • Small and lightweight
  • Splices provide sealing to un-etched wire insulations
  • No need to stagger wire splices
  • RoHS compliant

Also Purchased

Specifications

  • Weight:
    1.07 g
  • Wire Size:
    20–16 AWG
  • Barrel Inside Diameter :
    0.067 in (1.69 mm)
  • Product Length:
    1.15 in (29.21 mm)
  • Termination Method:
    Crimp

Related Products

Product Codes

  • Mfr Part No
    D-200-83
  • ECCN
    EAR99
  • MIL SPEC
    M81824/1-2
  • SCHEDULE B CODE
    8536.90.4000
