D-436 MiniSeal In-Line Butt Splice | 22 - 16 AWG Wire Size, Yellow

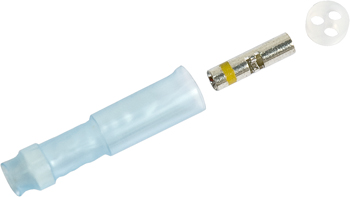

YELLOW/MULTI-WIRE SPLICE

RAYCHEM

Call For Pricing
Available to order
EDMO # D-436-43
MFR Part # D-436-43
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

MiniSeal wire-to-wire splicing products offer solutions for hundreds of aerospace and defense applications. These environment-resistant splices provide excellent reliability, long term performance, MIL-S-81824/1 qualification, and a low installed cost. They preserve the electrical integrity of the splice by preventing the penetration of liquids and the resulting chemical and galvanic corrosion.

Features

  • This in-line splice (EDMO# D-436-43):
  • Fits 22 - 16 AWG wire sizes
  • Blue-translucent nylon insulation material
  • Yellow color code
  • Tin-plated, copper conductor

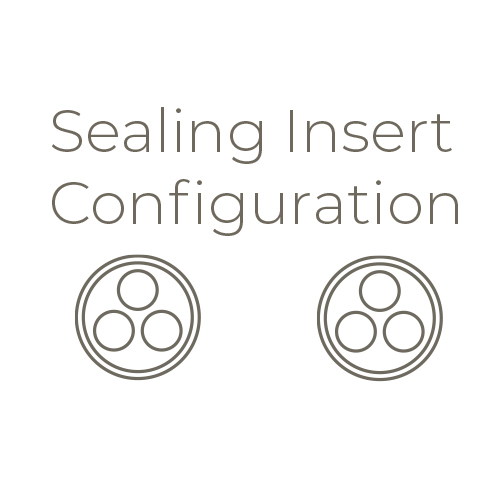

  • Side one has 3-hole sealing insert, side two has 3-hole sealing insert
  • Features:
  • Immersion-resistant
  • MIL-Spec approval
  • Small size
  • Light weight
  • Insulation and strain relief
  • Easy installation

Specifications

  • Splice Type:
    In-line butt splice
  • AWG Size:
    22 AWG – 16 AWG
  • Color Code:
    Yellow
  • Barrel Type:
    Closed
  • Insulated:
    Yes
  • Plating Material:
    Tin-plated copper
  • Operating Temperature:
    -55°C to 150°C (-67°F to 302°F)

Related Products

Product Codes

  • Mfr Part No
    D-436-43
  • MIL SPEC
    MIL-S-81824
  • ECCN
    EAR99
  • MIL SPEC
    MIL-S-81824
  • SCHEDULE B CODE
    8536.90.4000
