D-436 Mini-Seal In-line Splice | 16 – 20 AWG, Nickel Plated

Product Description

D-436 MiniSeal crimp splices are immersion-resistant, in-line nickel-plated sealed crimp splices that are designed for temperatures up to 150°C. These crimp splices are small, light, and environmentally resistant and meet SAE-AS81824 requirements.

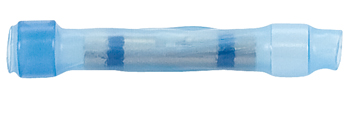

This Mini-seal splice (EDMO# D-436-83) is blue and has a 2.79 mm (min) inside diameter for use with 16 - 20 AWG gauge wire and used to splice a maximum of two conductors. Colored blue.

Specifications

• Splice Type:
  Butt splice
• Insulation Material:
  Radiation cross-linked, heat-shrinkable polyvinylidene fluoride
• Crimp Barrel:
  nickel-plated copper
• Meltable Inserts:
  Meltable thermoplastic
• Barrel Inside Diameter:
  2.79 mm (0.0.110 in)
• Wire Size:
  20 - 16 AWG 1,058 - 2,680 CMA 0.61 - 1.21 mm
• Maximum Number of Wires:
  side 1: 2 side 2: 2
• Operating Temperature:
  150°C max.
• Temperature Rating:
  -55°C to 150°C (-67°F to 302°F)
• Voltage Drop:
  6.9mV at 4.5A vs 8.1mV for an equal length of wire
• Tensile Strength:
  exceeds strength of the conductor
• Dielectric Strength:
  2.5kV
• Insulation Resistance:
  5,000 MΩ
• Government Certified:
  no
• Specification
  Qualified to MIL-S-81824/1

Product Codes

• Mfr Part No
  650127-000
• MIL SPEC
  M81824/1-2
• ANSI
  ANSI/ASQZ 1.4 AQL 2.5 LEVEL I
• ECCN
  EAR99
• MIL SPEC
  M81824/1-2
• SCHEDULE B CODE
  8536.90.4000

Documentation

• D-436 series Mini Seal splice datasheet
