DataBus Cable | 70 Ω Controlled Impedance, 24 AWG

Product Description

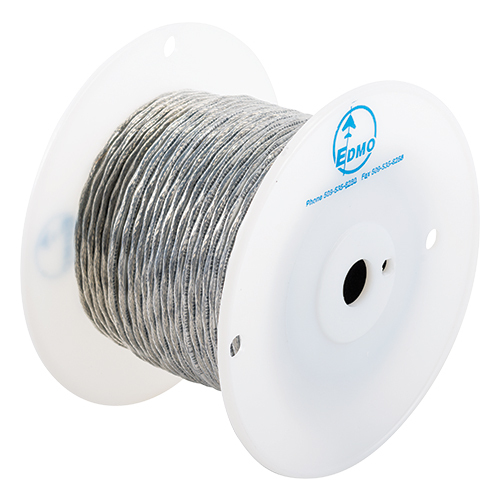

This 70 Ohm controlled impedance cable (EDMO# D620224) is specially designed for ARINC 429 DataBus systems. The D620224 is approved for handling high-speed digital information, including: UDI port inputs/outputs between DATA NAV processors, Lightning Sensor System processors, and PRIMUS weather radar indicators; picture bus signals between PRIMUS weather radar receiver/transmitters and EFIS symbol generators. (Honeywell EPIC/APEX Integrated Avionics Systems); and AlliedSignal approved PIC cable D620224 for video and deflection cabling between the symbol generators and display units for the EFS 40/50.

Specifications

• Weight:
  1.7 lbs/100 ft (2.5 kg/100 m)
• Outer Diameter:
  0.136 in (3.45 mm)
• Minimum Bend Radius:
  0.68 in (17.27 mm)
• Conductor:
  24 AWG Stranded TPC
• Shield Coverage:
  95% (min)
• Temperature Range:
  -55° to 150°C
• Impedance:
  70 Ω
• Capacitance:
  30 pF/ft (98.4 pF/ m)
• Velocity of Propagation:
  70 %
• DC Resistance:
  26.2 Ω /1000 ft (86 Ω/1000 m)
• Dielectric Voltage Rating:
  1.5 kV (rms)
• Conductor:
  Tin-Plated Copper
• Dielectric:
  ETFE
• Shield #1:
  Tin-Plated Copper Braid
• Jacket:
  ETFE, Clear
• Skydrol Resistant:
  SAE AS4373E, Method 601
• RoHS Compliant:
  RoHS Directive 2002/95/EC
• Flame/Smoke Requirements:
  FAR Part 25.869 (a) App. F, Part 1, (a)(3)
• Berry Specialty Metals Compliance:
  Complies with DFARS 252.225-7014, Alt 1

Product Codes

• Mfr Part No
  D620224
• ECCN
  EAR99
• SCHEDULE B CODE
  8544.49.3080
