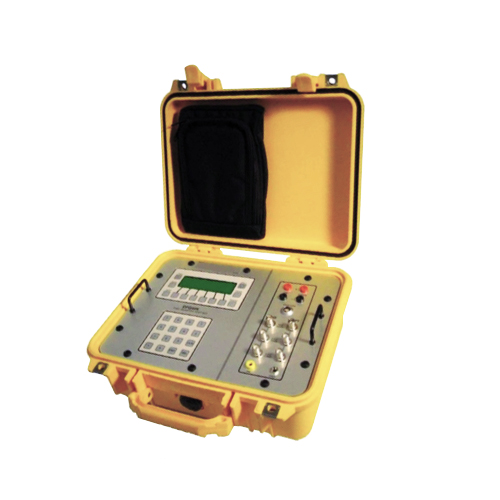

DFQ40K Digital Fuel Quantity Test Set

BARFIELD

Call For Pricing

Available to order

EDMO # DFQ40K

MFR Part # 101-01501

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The DFQ40K Digital Fuel Quantity test set is designed for and is compatible with all aircraft which have AC capacitance based Fuel Quantity Indicating Systems, including those equipped with transient suppressors. The DFQ40K has the ability to measure the insulation breakdown of tank units, wiring and connectors associated with the system, capacitance of the tank units which measure the level of fuel in the tanks and simulation of capacitances required to test and calibrate the aircraft indicating system.

Features

Microprocessor based
Completely self contained AC capacitance fuel quantity test system
Measures capacitance, insulation, DC voltage, resistance and distance to fault
Capacitance simulation and indicator testing
Custom multi-line backlit graphic display
Direct keypad entry of Tank and Comp simulation values
Uses all existing fuel quantity cables
Uses new generation of Smart Cables to perform
Automated Test Routines
Calibration date available from display with user alerts to approaching calibration date
Numerous user prompts
Powered from common “C” batteries with auto-off feature to conserve batteries
