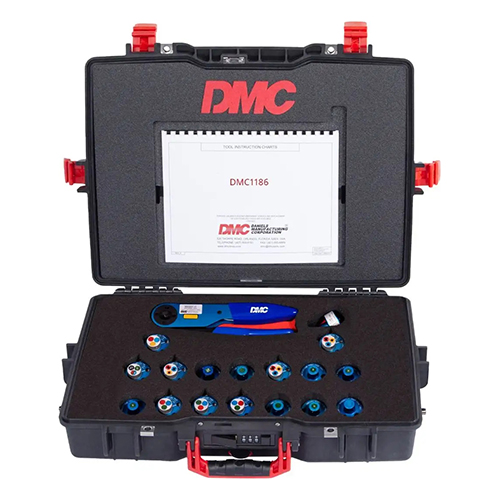

AF8 Tool Kit | M22520/1-02 to M22520/1-18 Turret Heads, G125 Go/No-Go Gage

Product Description

The DMC1186 kit provides the information and accessories necessary to use an AF8 (M22520/1-01) Standard Adjustable Crimp Tool and included accessories for crimping size 12 to 26 electrical contacts. The AF8 gives a Mil-Standard 8 impression crimp, which assures maximum tensile strength. The cycle controlled precision ratchet assures consistently accurate crimps every time. The tool frame has a built-in 8 step selector knob for ease in dialing the correct crimp depth setting for the wire being used.

Specifications

• Specification
  Weight: DMC1186 Kit : 13 lb AF8: 1.25 lb
• AF8 Dimensions:
  9.75 x 2.5 x 1.25 in
• Wire Range:
  12–26 AWG

Product Codes

• Mfr Part No
  DMC-1186
• ECCN
  EAR99
• SCHEDULE B CODE
  8203.20.6060
