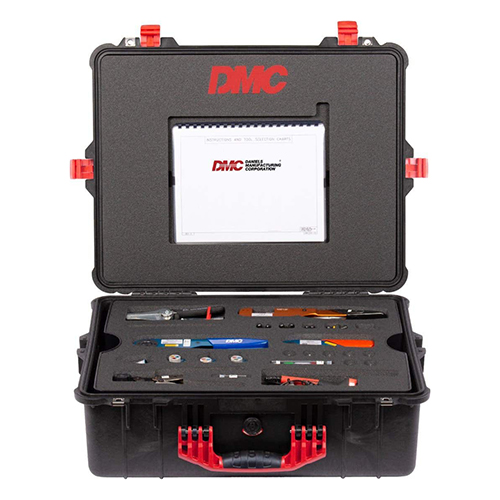

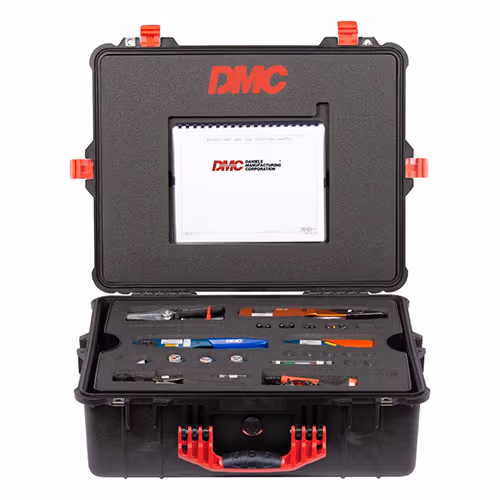

DMC1535 LAV-25 & LAV-AT Wiring System Maintenance Kit

DMC1535 LAV-25 & LAV-AT Wiring System Maintenance Kit

DANIELS MFG

Call For Pricing
Available to order
EDMO # DMC-1535
MFR Part # DMC1535
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The DMC1535 Light Armored Vehicle LAV-25 & LAV-AT Wiring System Maintenance Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC1535 kit includes the tool to application cross-reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the designated tooling.

Features

  • Kit Includes:
  • 8 Crimp Tools
  • 3 Turret Heads
  • 5 Positioners
  • 1 Single Position Head
  • 4 Die Sets
  • 11 Metal Insertion Tools
  • 12 Metal Removal Tools
  • 50 Plastic Insertion/Removal Tools
  • 4 Contact Gages
  • 2 Unwired Contact Removal Tools w/ Probes
  • 1 Wire Cutter
  • 2 Wire Strippers
  • 4 In-Service Inspection Gages
  • 1 Die Removal Tool
  • 1 Hex Wrench
  • 2 T-Handle Wrenches
  • 11 Adapter Tools
  • 1 Strap Wrench
  • 6 Connector Wrenches
  • 20 Socket Guide Pins
  • 1 Heat Gun & Accessories
  • DMC Connector Coverage:
  • SAE-AS17143 Insulated Terminals
  • SAE-AS20659 Non-Insulated Terminals
  • SAE-AS25036 Insulated Terminals
  • MS27142 Single Wire Connector
  • MS27144 Single Wire Connector
  • MIL-DTL-24308 D-SUB
  • MIL-DTL-26482 Series II
  • MIL-DTL-38999 Series I, III
  • SAE-AS50151 3450 Series
  • MIL-DTL-55302 PWB Connectors
  • SAE-AS81824 Environmental Splices
  • Amphenol 44 Series
  • Deutsch DS Series
  • Tyco/RaychemD-436 Series

Related Products

Product Codes

  • Mfr Part No
    DMC1535
  • SCHEDULE B CODE
    8203.20.6060
