WA23 Tool Kit with Mil-Spec Locators, Die Assemblies & Gages

DANIELS MFG

Call For Pricing
Available to order
EDMO # DMC1550
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

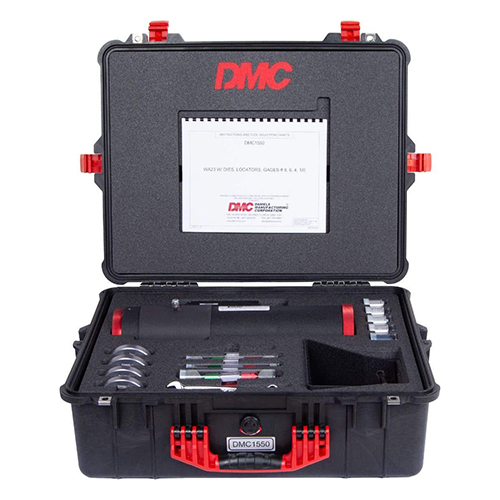

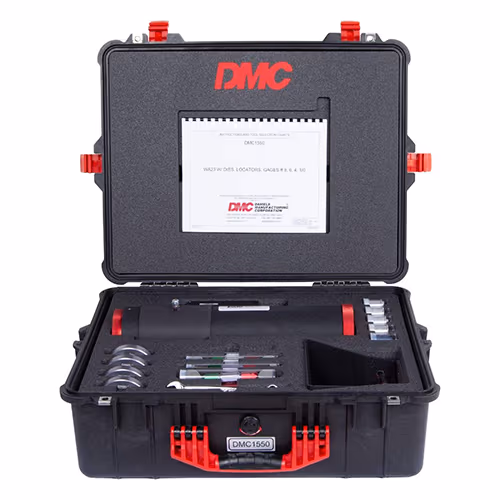

The DMC1550 kit includes the WA23® pneumatic crimp tool, Mil-Spec dies, locators, and Go/No-Go inspection gages. The WA23 (M22520/23-01) is designed to produce four indent crimps on contacts. This benchtop tool is capable of crimping contacts size 8-0 AWG with no additional power boosters. The WA23 operates on standard shop air 90–125 psi (5.4–8.16 BAR) and features a full-cycle control system that functions with a push of a button.

The DMC1550 kit includes 4 dies, 5 locators, and 4 gages all Mil-Qualified to the AS22520/23 specification. Custom dies and locators are available to meet specific requirements. It is important to note that only Mil-Spec dies and locators can be used for military applications. This kit also contains illustrated operating instructions for all the tooling included.

Features

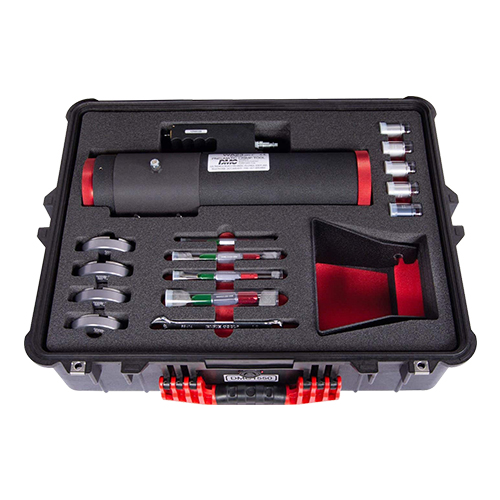

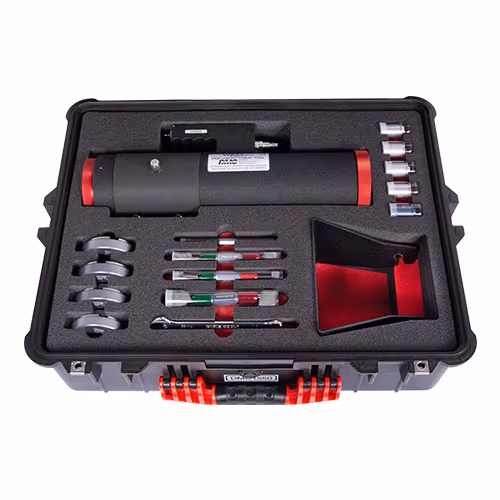

  • Kit Includes:
  • WA23 Pneumatic Crimp Tool
  • WA23-2 Die Assembly, Gage 8
  • WA23-3 Die Assembly, Gage 6
  • WA23-4 Die Assembly, Gage 4
  • WA23-5 Die Assembly, Gage 1/0
  • WA23-9 Locator #8
  • WA23-10 Locator #6
  • WA23-11 Locator #4
  • WA23-12 Locator #4, 4N, 4G
  • WA23-13 Locator #1/0
  • G693 Go/No-Go Gage (0.130/0.136)
  • G694 Go/No-Go Gage (0.171/0.178)
  • G695 Go/No-Go Gage (0.195/0.202)
  • G696 Go/No-Go Gage (0.325/0.332)
  • Black Polypropylene Copolymer Case

Specifications

  • WA23 SPECIFICATIONS:
  • Weight:
    20.1 lb
  • Dimensions:
    17 x 7.3 x 9.3 in (432 x 182 x 235 mm)
  • Power:
    Compressed Air
