DMC2058A One-Step Band Installation Kit

Product Description

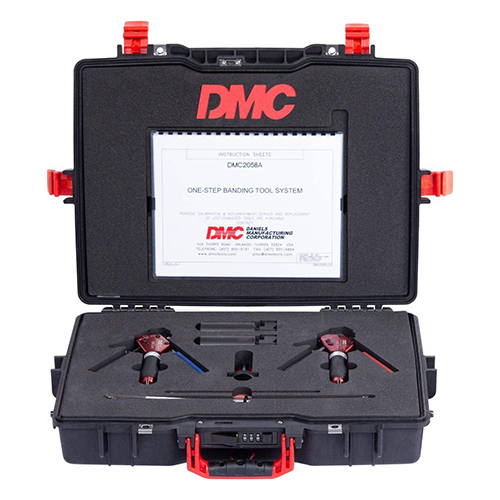

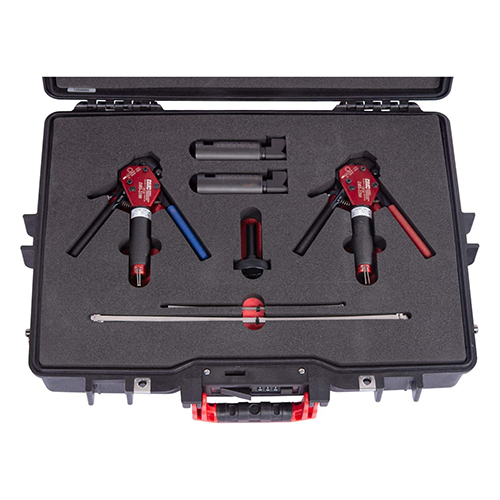

The DMC2058A is an all-inclusive One-step Band Installation Kit. It provides your service technicians with both the DBS-2100 (M81306/1A) .250” Wide Band Application Tool and the DBS-2200 (M81306/1B) .125” Wide Mini-Band Application Tool, along with stamped buckle bands, and all accessories needed to terminate bands. The DMC2058A Kit is equipped to install all M85049/128-3,-4 (.250 Wide) and M85049/128-7, -8 (.125 Wide) stamped EMI/RFI shield bands. It includes: DBS-2102 (M81306/1-01) DBS-2202 (M81306/1-02) M85049/128-3 (10 PCS) M85049/128-7 (10 PCS). Also included are all calibration, support accessories, and illustrated operating instructions for all the tooling included.

Specifications

• Weight:
  22 lbs
• Band Width:
  0.125 & 0.25 in

Product Codes

• Mfr Part No
  DMC2058A
