PN19 Radio Altimeter Antenna | 4,200M–4,400MHz, ARINC 707

Product Description

The PN19 series radio altimeter antennas uses microstrip technology to produce an extremely low-profile antenna designed for high quality, low-cost, and lightweight. The dielectric insert and radiating elements are built into a metal housing which protects the dielectric surface from the elements and increases erosion protection, prevents water intrusion, delamination.

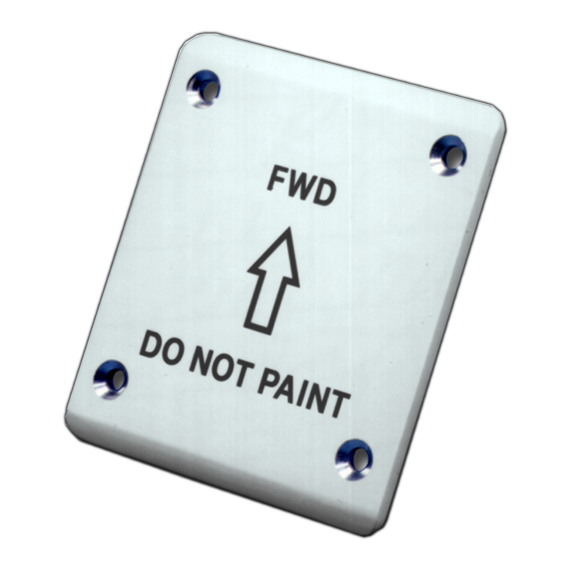

This PN19 flush mount antenna (EDMO# DMPN19-1-1) is an ARINC 707 type antenna.

Specifications

• Weight:
  5 oz
• Connector:
  TNC female
• Frequency Range:
  4,200 MHz – 4,400 MHz
• VSWR:
  < 2.0:1 @ 4,200 MHz – 4,400 MHz, max < 1.8:1 @ 4,275 MHz – 4,325 MHz, max
• Gain:
  10 dBi
• Impedance:
  50Ω
• Polarization
  : Linear
• Temperature:
  -55°C to 85°C, operating
• Altitude:
  -1,000 ft to 70,000 ft
• Vibration:
  10G's
• Approvals:
  FAA TSO C87 ARINC 707/552 DO160C...E1-ABC’XWHDNSXXXXXXXXXX MIL-E-5400

Product Codes

• Mfr Part No
  PN19-1-1
• ECCN
  7A994
• SCHEDULE B CODE
  8526.10.6000
• TSO
  C87

Documentation

• PN19 Antenna Data Sheet
