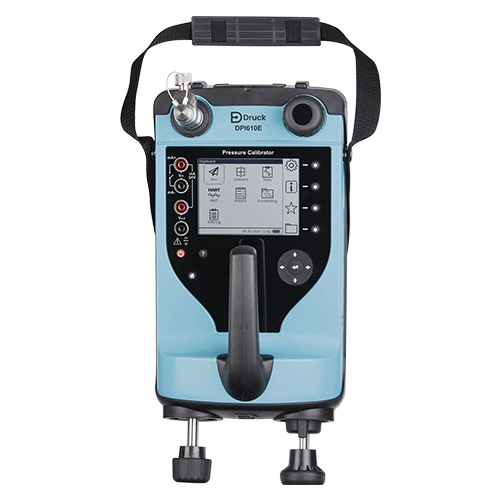

DPI610E-Aero Portable Aircraft Leak Tester

Product Description

The DPI610E-Aero is a low cost yet flexible portable calibrator for precision leak testing of aircraft pitot static systems. Configured as a single channel unit for testing either altitude or airspeed parameters, it is fully self-contained with manual pressure and vacuum generation and venting facilities. Conversion to aeronautical units is provided and the instrument also includes leak and switch tests as well as other functions. The pneumatics system is the DPI610E-A limits both the maximum rate of climb and descent to protect connected delicate aircraft instrumentation such as Rate of Climb (RoC) meters. With a 5m length aero hose (6mm bore) and RoC meter attached with a total volume of 1 liter the maximum rate of climb is ± 6000 ft/min. Pressure fitting is a choice of AN4, AN6, Hansen or Staubli quick fit connection which includes an integral valve for letdown to ambient ground pressure conditions.

This DPI610E-Aero Portable Aircraft Leak Tester (EDMO# DPI610E) has all pressure units, an AN4 output connector adapter, and Bluetooth is not required for operation.

Specifications

• Altitude Range:
  -3000 to 50,000 ft
• Airspeed Range:
  0 to 600 kts
• Altitude Scales:
  Feet and meters or pressure units (mbar, hPa, kPa, psi, mmHg@0°C, inH 2 O@0°C)
• Airspeed Scales:
  Knots, kph, or pressure units (mbar, hPa, kPa, psi, mmHg@0°C, inH 2 O@0°C)
• Leak Test Scales:
  Altitude: ft/min, m/min, or pressure units/min (mbar, hPa, kPa, psi, mmHg@0°C, inH 2 O@0°C) Airspeed: kts/min, kph/min, or pressure units/min (mbar, hPa, kPa, psi, mmHg@0°C, inH 2 O@0°C)
• Pressure/Vacuum Source:
  An integral pneumatic hand pump and volume adjuster are supplied for generation and fine adjustment of pressure or vacuum. Release valve and ground valve supplied for lowering values to atmospheric. Rate of climb limited to ± 6,000 ft/min during ascent or descent when it is connected to an instrument containing a total volume of 1 liter (1,000 cubic centimeters) including the hose.
• Operating Temperature:
  -10°C to 50°C
• Airspeed Accuracy:
  200 kts: ± 0.6 kts 400 kts: ± 0.3 kts 600 kts: ± 0.15 kts
• Altitude Accuracy:
  Sea Level: ± 11 ft 10,000 ft: ± 15 ft 30,000 ft: ± 30 ft
• Absolute Range Accuracy:
  0.02% FS

Product Codes

• Mfr Part No
  DPI610E-A-UO-B0-P1
• SCHEDULE B CODE
  9031.80.8080
