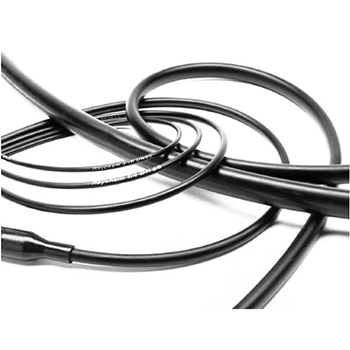

DR-25 Heat Shrink Tubing | Black, 1 Inch I.D.

HEAT SHRINK TUBING/ 1, Black. Sold on 100' spool. Operating temperature range: -75 degrees Celsius to +150 degree Celsius, Minimum shrink temperature: +175 degrees Celsius, flame retardant.

TE CONNECTIVITY

Call For Pricing

Available to order

EDMO # DR25-1-0

MFR Part # DR-25-1-0-SP

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

DR25 heat shrink tube is specially formulated for optimum performance in high-temperature fluid and long term heat resistance. DR25 has excellent resistance to aviation and diesel fuels, hydraulic fluids, and lubricating oils. Additional applications for DR25 tubing are as a jacketing material for cables and harnesses in military and motorsports vehicles.

Version (EDMO# DR25-1-0) is black 1 inch inside diameter heat shrink tubing.

Features

Flame retardant
System 25 tubing
Shrink ratio 2:1
RoHS compliant

Specifications

Size:

1 in
Inside Diameter:

25.4 mm (1 in), expanded 12.7 mm (0.5 in), recovered
Recovered Wall Thickness:

1.78 ±0.28 mm (0.070 ±0.011 in), after heating
Operating Temperature:

-75°C to 150°C (-103°F to 302°F)
Approvals:

AMS-DTL-23053/16* VG95343 Part 5 Type D VDE 0341/Pt 9005 Def Stan 59-97 Issue 3 Type 6B BS 4G-198 Part 3 10A
