DT100 Telephone Handset | 9-pin D-sub connector

Product Description

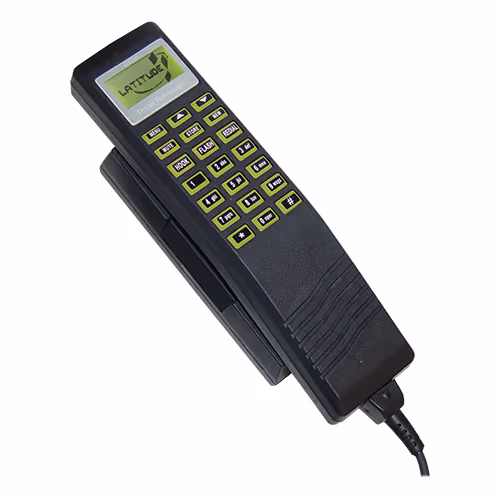

The DT100 is a lightweight and comfortable handset for modern aircraft telephone systems that compliments will the aircraft's cabin decor. Advanced features such as a noise reducing microphone, adjustable volume control, and user-friendly operation are included. Additionally, last number redial, 10 memory speed dial numbers, flash, hold, and mute features are also provided. A lighted keypad assists users with operating the handset, and a locking base provides security and flexible mounting. The Tip and Ring telephone circuit allows the DT100 to be connected to most general aviation transceivers.

DT100-2XX Install kit consists of 1 each 9 Pin Female D-Sub Connector, 9 each D-Sub Connector Sockets, 1 set of Screw Locks.

Specifications

• Weight:
  0.5 lb (0.23 kg) Dimensions: 7.51 x 1.85 x 2.47 in (192 x 47 x 63 mm) Telephone line inputs: 1 Telephone I/F: 2-wire analog POTS Distortion: Ringing voltage: 90 VAC ± 15V (no load) On-hook voltage: -48 VDC (with respect to airframe) Input voltage: 22 VDC – 33 VDC (27 VDC, nominal) Input current: 0.5 Amp (nominal) Fuse rating: 1 Amp Temperature: -5°F to 105°F (-20°C to 40°C), operating -40°F to 158°F (-40°C to 70°C), survival Humidity: 95% Altitude: 35,000 ft Connectors: RJ11/6 jack or SD910JV50 9 D-sub Case material: Flame retardant ABS, polyac® PA-766 Flame retardant qualification: FAR25.853 Part1, (a),(1),(v) Install kits include (DT100-2XX model): (1 ea.) 9-pin female D-sub connector, (9ea.) D-sub connector sockets, (1 set) screw locks

Product Codes

• Mfr Part No
  DT100-202
• DFARS
  DO160E
• ECCN
  7A994
• SCHEDULE B CODE
  8471.49.0000
