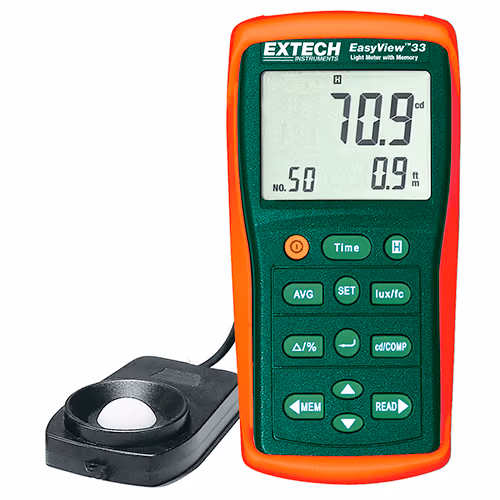

EasyView™ Light Meter | With Memory, NIST/MFG Cert


EXTECH

Call For Pricing
Available to order
EDMO # EA33-NIST
MFR Part # 27K7546
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This compact and ruggedly designed meter has a wide measurement range to 99,990 Foot Candles in 5 ranges and 999,990 Lux in 5 ranges with 0.001Fc/0.01Lux resolution. Features include: Store and Recall up to 50 measurements with relative or real time clock stamp, Luminous intensity (candela) calculation, a ripple function that excludes stray light from the primary light source measurement, Multi-point average function, Timed Hold, Relative measurement in absolute value or % deviation, Comparator function with high/low alarms, and Auto Power Off with disable.

Version (EDMO# EA33-NIST) includes calibration traceable to NIST and certificates.

Features

  • Includes:
  • Built-in stand
  • light sensor and protective cover with 36 in. cable
  • Protective holster
  • 6 AAA batteries
  • Carrying case
  • Features:
  • Wide measurement range to 99,990Fc (999,900Lux) with resolution of 0.001Fc and 0.01Lux
  • Luminous intensity (candela) calculations
  • Ripple function excludes the effect of stray light from the primary light source measurement
  • Auto Power off with disable feature
  • Multiple point average function
  • Timed-Hold, Relative in absolute value or % deviation, and Comparator function with high low alarms
  • Cosine and color corrected, CNS 5119 Class II

Specifications

  • Weight:
    11.29 oz
  • Dimensions:
    5.9 x 2.8 x 1.4 in.
  • Display counts:
    999,999 count LCD
  • Fc range:
    9.999, 99.99, 999.9, 9999, 99,990Fc
  • Lux range:
    99.99, 999.9, 9999, 99,990, 999,900Lux
  • Max resolution:
    0.001Fc/0.01Lux
  • Basic accuracy:
    ±3%
  • Cosine & color corrected:
    Yes
  • CE approved:
    Yes

Product Codes

  • Mfr Part No
    27K7546
