F1000 Analog VHF/UHF Portable Radio | 16 Channel, No Display

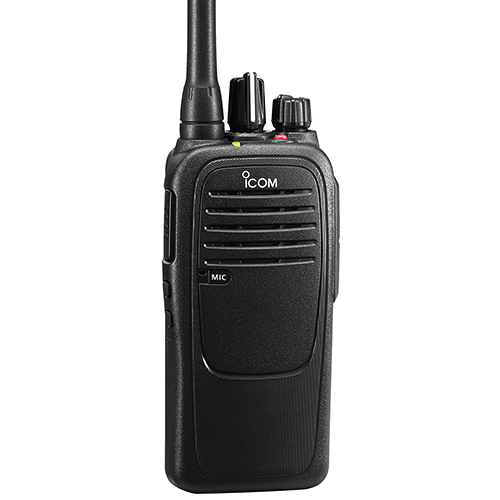

FC 1000 Analog VHF/UHF Portable Radio | 16 Channel, No Display

ICOM AMERICA

Call For Pricing

Available to order

EDMO # F1000 RC

MFR Part # F1000 RC/IC-F1000

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The F1000 VHF/UHF portable radio is the go-to radio that provides simple operation while fitting comfortably in the user's hand. Designed for rugged work environments, the F1000 series features a built-in motion sensor, channel announcement, and waterproof & dust-proof chassis.

Features

This F1000 handheld radio (EDMO# F1000 RC) includes:
The F1000 radio without display
BP-279 1570 mAh, lithium-ion battery pack
BC-213 desktop battery charger
FA-SC55V 150 – 174 MHz antenna
Features:
Built-in motion sensor detects a workers movement
Programable man-down and lone-worker functions
Built-in 2-Tone, 5-Tone, CTCSS and DTCS for group communication and selective calling
Programmable PTT ID, emergency (TX/RX), radio check (RX), and stun/revive (RX)
Built-in voice scrambler
Channel announcement
8 DTMF autodial memories
"Shift key" function increases number of programmable key assignments
Surveillance function

Specifications

Weight:

8.5 oz (240 g)
Dimensions:

2.1 x 4.4 x 1 in (5.2 x 111.8 x 24.5 mm)
Frequency Coverage:

136 MHz – 174 MHz
Number of Channels:

16 Channels
Power Requirements:

7.5 VDC, nominal
Current Drain:

Tx: 1.3 A Rx: 500 mA / 77 mA (max. audio / standby)
Antenna Impedance:

50Ω
Temperature Range:

-22°F to 140°F (-30°C to 60°C), operating
TRANSMITTER:
Output Power:

5W, 2W, 1W (Hi, L2, L1)
Frequency Deviation:

± 5.0 kHz (@ 25 kHz) ±4.0 kHz (@ 20 kHz) ±2.5 kHz (@ 12.5 kHz)
Spurious Emission:

70 dB minimum (USA/EXP) 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR)
Frequency Stability:

±2.5 ppm
Audio Harmonic Distortion:

1.0% typical (@ 25/20 kHz) 1.5% typical (@ 12.5 kHz) (at AF 1 kHz 40% deviation)
FM Hum and Noise (without CCITT filter):

46 dB typical (@ 25 kHz), 40 dB typical (@ 12.5 kHz) (USA/EXP)
Residual Modulation (with CCITT filter):

50 dB typical (@ 25 kHz), 47 dB typical (@ 20 kHz), 44 dB typical (@ 12.5 kHz) (EUR)
External Microphone Connector:

3-conductor 2.5 (d) mm (1/10)/2.2 kΩ
RECEIVER:
Sensitivity:

(at 12 dB SINAD): 0.25 μV typical (at 20 dB SINAD): –4 dBμV typical emf
Adjacent channel selectivity:

76 dB typ. (@ 25 kHz), 72 dB typ. (@ 20 kHz), 53 dB typ. (@ 12.5 kHz) (EUR)
Spurious Response Rejection:

70 dB, minimum
Intermodulation Rejection:

74 dB typical (USA/EXP) 68 dB typical (EUR)
Hum and Noise:

with CCITT filter: 51 dB typical (@ 25 kHz), 45 dB typical (@ 12.5 kHz) (USA/EXP) without CCITT filter: 52 dB typical (@ 25 kHz), 49 dB typical (@ 20 kHz), 46 dB typical (@ 12.5 kHz) (EUR)
AF output power (at 5% distortion):

Internal SP: 1500 mW typical (With 8 Ω load) External SP: 400 mW typical (With 8 Ω load)
External Speaker Connector:

2-conductor 3.5 mm (1⁄8) / 8Ω
