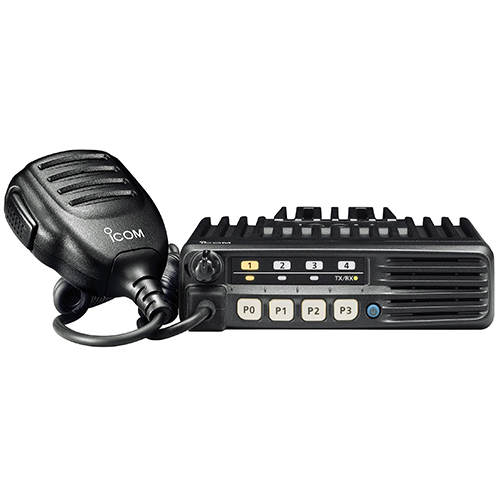

F5011 VHF Transceiver | 136-174 MHz, No Display, 8 Channels

ICOM AMERICA

Call For Pricing

Available to order

EDMO # F5011 51

MFR Part # F5011 51

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The F5011 is a versatile, VHF Transceiver is designed with rugged construction and simple operation. This radio has four programmable buttons and eight channels communication with 2-tone, 5-tone, MDC 1200, CTCSS, and DTCS capabilities as standard to set up customized talk zones. A priority scan mode allows users to monitor one or two priority channels while scanning other channels. The F5011 series built military rugged and tested to MIL-STD 810 F specifications to survive harsh environments and keep on working.

This F5011 VHF Transmitter (EDMO# F5011 51) has no display, 8-channels, and 136 MHz - 174 MHz frequency coverage.

Features

Simple operation for instant communication
Built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard features
Built-in MDC 1200 for transmitting a PTT ID and emergency signal and for receiving radio check, stun and revive
Enhanced scan features: monitor one or two priority channels while scanning non-priority channels
Remote channel control with optional ACC cable
Four watt front mounted speaker
Wide frequency coverage
Programable microphone hanger action
Optional DTMF microphone (HM-152T)
Optional voice scrambler unit (UT-109R or UT-110R)
DTMF autodial function
PC programmable
Talk around function
Power-on password function
Nuisance delete function
Time-out-timer, lock-out penalty timer

Specifications

Output Power (at 13.6 VDC):

50W, 25W, 5W (Hi, L2, L1)
Max. Frequency Deviation:

±5.0 kHz/±2.5 kHz (Wide/Narrow)
Frequency Stability:

±2.5 ppm
Spurious Emissions:

70 dB min.
FM Hum and Noise:

46/40 dB typ. (Wide/Narrow)
Audio Harmonic Distortion (AF 1 kHz 40% deviation):

3%, typical
External Microphone Impedance:

600Ω (8-pin modular)
RECEIVER:
Sensitivity (at 12 dB SINAD):

0.25 μV, typical
Adjacent Channel Selectivity:

75/65 dB typical (Wide/Narrow)
Spurious Response Rejection:

70 dB min.
Intermodulation Rejection:

75 dB typ.
Hum and Noise:

45/40 dB typ. (Wide/Narrow)
Audio Output Power:

4W typical (at 5% distortion, 4Ω load)
External speaker connector:

2-conductor 3.5 mm (1⁄8 in) / 4Ω
Supplied Accessories:

Hand Microphone (HM-152) Microphone Hanger DC power cable Key assign stickers Mounting bracket kit
