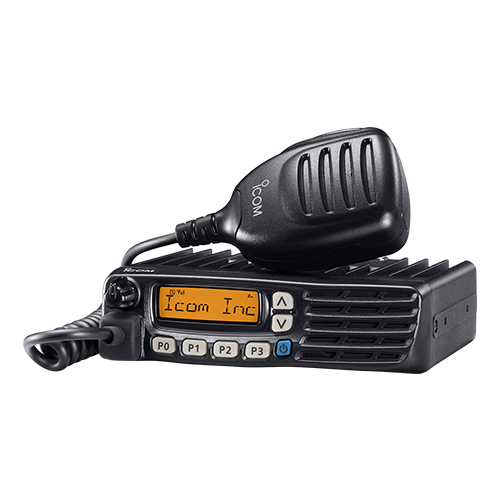

IC-F6021 UHF Mobile Transceiver | 400–470 MHz & 450–512 MHz, 128 Channels, 45 W

Product Description

The F6021 Series UHF transceiver is ideal for small-to-mid-sized systems for public safety, large industry to light commercial users. This transceiver offers multiple signaling, advanced scanning, improved external channel control capability, and wide frequency coverage packed in a compact body. This rugged mobile easily exceeds your expectations with its reliable performance and communication quality.

Specifications

• Weight:
  2.4 lb (1.1 kg)
• Dimensions:
  5.91 x 1.57 x 6.59 in (150 x 40 x 167.5 mm)
• Frequency Coverage:
  400–470 MHz, 450–512 MHz
• Number of Channels:
  128 Channels; 8 Zones
• Channel Spacing:
  12.5 kHz, 15 kHz
• Type of Emission:
  11K0F3E
• RF Output Power:
  45 W
• Current Drain:
  45 W: 14.0 A Rx (Standby): 300 mA RX (Max Audio): 1.2 A
• Spurious Emissions:
  70 dB
• Frequency Stability:
  ±2.5 ppm
• Audio Harmonic Distortion:
  3% typical; 40% deviation
• FM Hum and Noise:
  40 dB
• Sensitivity at 12 dB SINAD:
  0.25 µV
• Adjacent Channel Selectivity:
  65 dB
• Spurious Response Rejection:
  80 dB
• Intermodulation Rejection:
  75 dB
• AF Output Power:
  4 W

Product Codes

• Mfr Part No
  F6021 51
