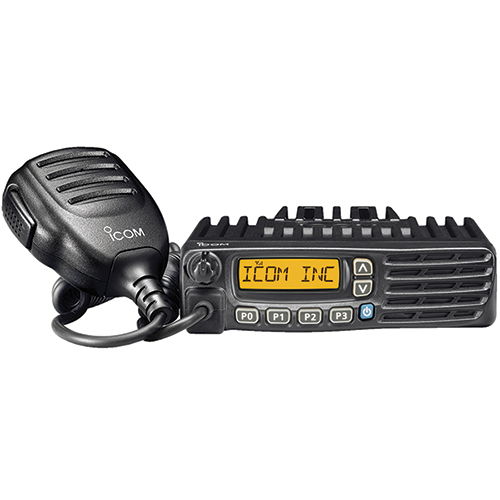

IC-F6121D VHF & UHF Digital/Analog Mobile Transceiver

ICOM AMERICA

Call For Pricing

Available to order

EDMO # F6121D 57

MFR Part # F6121D 57

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The IC-F6121D VHF and UHF digital/analog transceiver provides NXDN™ CAI-based IDAS digital mode operation and is compatible with IDAS single-site trunking. Users can customize the radio to suite there specific needs; the following information is programable: PTT ID, individual/talkgroup list, radio access number (RAN), status, short data message (SDM), call alert, radio check (RX), stun/kill/revive (RX), remote monitor (RX), emergency (No ACK), digital voice scrambler, and GPS data.

Features

Supplied Accessories:
Hand microphone (HM-152)
microphone hanger
DC power cable
key assign stickers
mounting bracket kit
Features:
128 channel capacity and up to 8 zones allows users to group channels together
8–character alphanumeric LCD displays icons and shows a variety of information including operating status, caller's name, and received messages
Tough aluminum die-cast chassis and polycarbonate front panel are tested to the MIL standard 810F
Five levels of mic gain provides clearer transmissions
Large, backlit, front buttons are programmable to meet specific requirements
An optional 25-pin, D-Sub ACC cable (OPC-2078) allows for an external GPS receiver or PC to be connected
A powerful, 4-watt speaker delivers clear audio throughout the vehicles cabin
IDAS™ digital operation provides NXDN™ CAI-based IDAS digital mode; compatible with IDAS multi-site conventional and IDAS single-site trunking
Analog mode provides 2-tone and 5-tone signals giving uses selective calling, quite stand-by, and other convenient functions; and a stun/kill function disable the radio while a revive feature restores functionality
Priority scanning allows users to monitor one or two priority channels while scanning non-priority channels; the transmit channel and talkback functions allow for quick responses while scanning
MDC 1200 compatibility provides PTT ID, radio check (RX), emergency (No ACK), stun/revive (RX), and a table for 500 alias (analog only)
Lone worker function alerts users to ""check in"" if the radio is not operated after a preset period; an emergency alert signal is sent out automatically if the user does not ""check in""
CTCSS/DTCS encode/decoder (analog only)
8 DTMF autodial memories
Microphone hanger action programmable
Optional DTMF microphone (HM-152T)
PC programmable
Power-on password function
Time out timer
Talk around function
Nuisance delete function (analog only)
Forced narrow function (analog only)

Specifications

Weight:

2.4 lb (1.1 kg)
Dimensions:

5.91 x 1.57 x 6.59 in (150 x 40 x 167.5 mm)
Frequency Coverage:

400 – 470 MHz, 450 – 512 MHz
Number of Channels:

128 channels (8 zones)
Type of Emission:

F6121D: 11K0F3E, 4K00FIE/F1D
Channel Spacing:

F6121D: 6.25/15/30kHz, 6.25/12.5kHz
PLL Channel Strip:

2.5 kHz, 3.125 kHz (VHF)
Power Supply Requirement:

13.6 VDC
Antenna Impedance:

50Ω (SO-239)
Operating Temperature:

-30°C to 60°C; -22°F to 140°F (radio only)
Current Drain:

Tx High 50W/45W: 11A Rx Max. audio: 1.2A Standby: 300 mA
Output Power:

F6121D: 45W, 25W, 4.5W (Hi, L2, L1), @ 13.6 VDC
Frequency Deviation (maximum):

±5.0 kHz (wide) ±2.5 kHz (narrow)
Frequency Stability:

±1.0 ppm
Spurious Emissions:

72dB min., 70dB min.
FM Hum and noise:

46/40dB typical (Wide/Narrow)
Audio harmonic distortion (AF 1kHz 40% deviation):

3% typical
External Microphone Connector:

600Ω (8-pin modular)
Sensitivity (at 12dB SINAD):

0.25μV typical, 0.18μV typical, (at 5% BER)
Adjacent channel selectivity:

F6121D: 75/65dB typical (W/N), 60dB typical (digital)
Spurious response rejection:

70 dB minimum
Intermodulation rejection:

75dB typical (W/N) 70 dB μV emf typical (digital)
Hum and Noise:

45/40 dB typical (W/N)
Audio output power (at 5% distortion):

4 watt typical
External speaker connector:

2-conductor 3.5 mm (1⁄8 in)⁄8Ω
