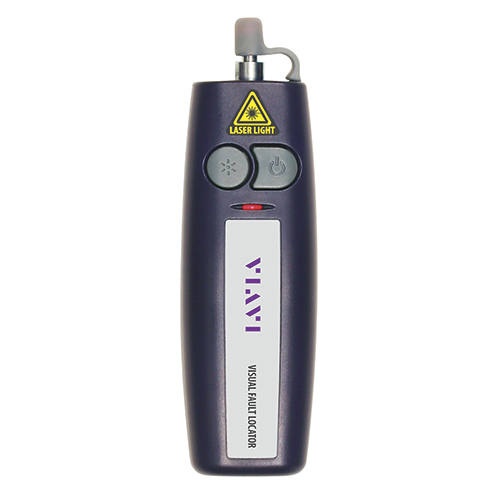

FFL-050 Visual Fault Locator

Visual Fault Locator | Optical Fiber Damage/Break Locator

VIAVI

Call For Pricing
Available to order
EDMO # FFL-050
MFR Part # FFL-050
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

VIAVI Visual Fault Locators (VFL) locates optical fiber damage and breaks quickly and easily as well as problem areas in fiber cables. This tool is capable of pinpointing sharp bends, breaks, and damages in fiber, conducting end-to-end continuity tests, and performing fiber tracing and identification. The FFL-50 is equipped with a 2.5 mm interface and is compatible with SC, ST, and FC connectors. When in use, the VFL emits a bright red (Class II) laser beam that makes damages in the fiber visible from a distance. The light can either be set to flashing or continuous light modes according to the operator's preferences.

Features

  • Compact and ergonomically design for ultimate portability
  • 30+ hours of operation
  • Visible wavelength of 650 nm
  • High powered 1 mW laser for single-mode (>7 km) and multi-mode (>5 km) connectors
  • Continuous or flash illumination
  • Universal connector interface for quick and easy connection

Also Purchased

Specifications

  • Weight:
    1.06 oz (with 2xAAA batteries)
  • Dimensions:
    4.5 x 1.4 x 0.08 in
  • Fiber Compatibility:
    Singe-mode, multimode
  • Wavelength:
    650 nm (visible)
  • Laser Safety Rating:
    Class II
  • Output Power:
    1.0 mW max
  • Operating Modes:
    Continuous and flashing
  • Range:
    >7 km single-mode >5 km multimode
  • Connector Interface:
    Universal 2.5 mm (fixed) Universal 1.25 mm adapter (sold separately)
  • Battery Type:
    2xAAA

Product Codes

  • Mfr Part No
    FFL-050
  • ECCN
    7B994
  • SCHEDULE B CODE
    9030.40.0000
