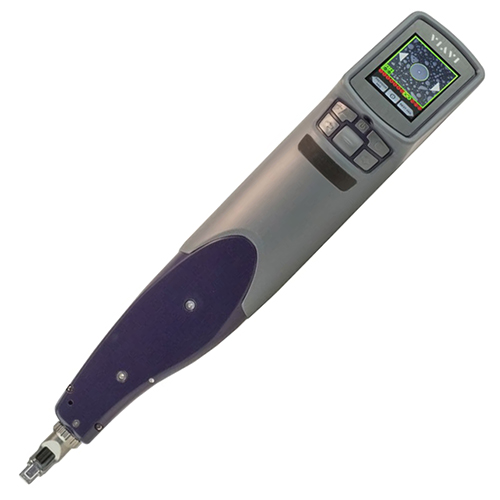

FiberChek Sidewinder MTP Probe Kit | Autofocus, WiFi, | MPO, SM, and MM Tips

VIAVI

Call For Pricing

Out of stock

EDMO # FIT-FCSWK2

MFR Part # FIT-FCSW-KIT2

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The FiberChek Sidewinder is the industry's first "all-in-one" handheld inspection and analysis microscope for multifiber connectors such as MPO. The latest addition to VIAVI's award-winning FiberChek family delivers a completely automated solution to inspect and analyze every fiber of an MPO or other multifiber connector with industry-leading reliability and speed.

As MPO connectivity continues to grow in adoption, maintaining MPO end faces is more important than ever. Managing clean MPO connections requires systematic and proactive methods that many technicians may find troublesome, confusing and time-consuming. Sidewinder eliminates these challenges by fully automating every detail of the MPO inspection workflow to ensure fast and reliable results.

Nothing comes close to the speed, reliability, and intuitive operation that Sidewinder delivers for MPO inspection and analysis. Simply insert it into the bulkhead, press a button, and the Sidewinder will provide automatic results for all 12 MPO fibers in fewer than 12 seconds. Eliminate hassles with manually adjusting controls to focus, scan, or count which fiber you are on and turn minutes into seconds for testing each connector.

Features

Fully autonomous multi-fiber inspection
Automate the inspection workflow
Certify end face quality to customer requirements
Ensure accurate and fast test performance with automatic test results in under ¬12 seconds
Easily access connections in any location
Connect with anything and test anywhere
With 100% autonomous operation, technicians of any skill level have everything they need in a portable MPO inspection microscope
The integrated touchscreen display gives users full control to view live images and analysis results, pan & scroll across the end face to view each fiber, and easily navigate results.
Navigate and select your desired acceptance criteria including IEC-61300-3-35 or customer-specific requirements
Store, name, and recall test results directly on the device

Specifications

Weight:

19.4 oz (550g)
Dimensions:

13.2 x 2.4 x 1.9 in (335 x 60 x 48 mm)
Display:

240 x 320, 2.5 in LCD touchscreen
Output:

USB, WiFi
Power Source:

Internal Li-ion battery, USB power
Run Time:

5 hr
Charge Time:

2 hr (2A max power source) 8 hr (500mA max power source)
High Magnification Field-of-view Values (μm):

Horizontal: 356μm Vertical: 475μm
Low Magnification Field-of-view Values (μm):

Horizontal: 713μm Vertical: 950μm
Live Image:

640 x 480, 10 fps
Power Supply:

5V wall adapter with interchangeable plug for US, EU, UK, AU
Camera Sensor:

2560 x 1920, 1/2.5 in CMOS, 5 megapixel
Auto Index:

Pan/Scroll up to 32 fibers (2 x 16)
Light Source:

Blue LED, 100,000+ hr life
Lighting Technique:

Coaxial
Certification:

CE, EN/IEC 61326
