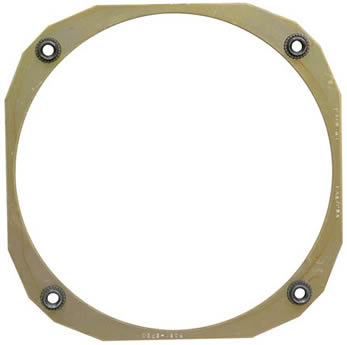

NUT RING/Instrument mounting kit, Includes: Bracket, 3-4 screws, 2 threaded install guides, install instructions and instructions for continued airworthiness.

NUT RING/Instrument mounting kit, Includes: Bracket, 3-4 screws, 2 threaded install guides, install instructions and instructions for continued airworthiness.

FASTENER SPECIALTY

Call For Pricing
Available to order
EDMO # FSIM-03
MFR Part # FSIM-03
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

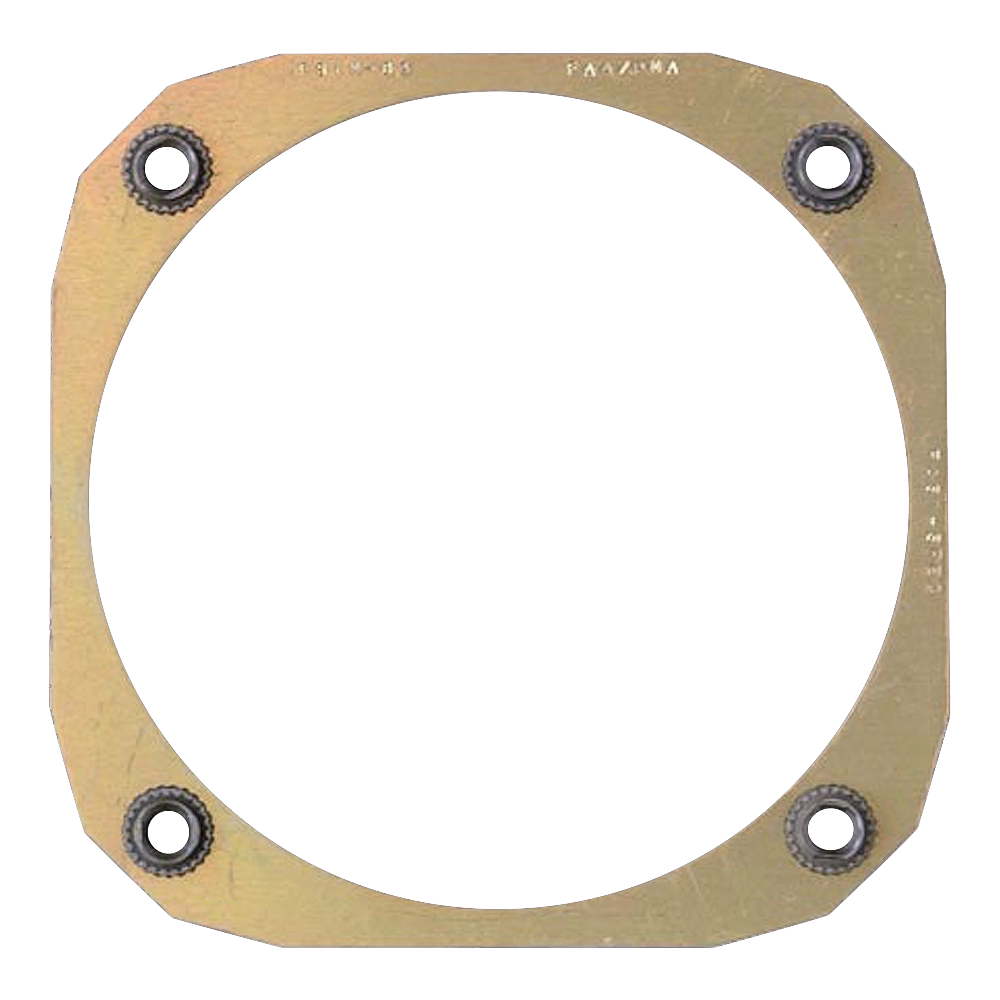

NUT RING/SHELL SIZE 3.125/6-32
Lightweight brackets with self-wrenching, self-locking press nuts.
Eliminates the risk of loose hardware behind the panel.
Quick and easy installation.

KIT INCLUDES:

  • BRACKET,
  • 3-4 SCREWS,
  • 2 THREADED INSTALL GUIDES.
  • INSTALL INSTRUCTIONS
  • INSTRUCTIONS FOR CONTINUED AIRWORTHINESS.


Part No. Shell Size T THRD UNC-3B A B C D F CH
FSIM-01 3.125 6-32 2.475 3.360 3.160 .123/.183 22 .25 x 45
FSIM-02 3.125 6-32 2.475 3.360 3.160 .123/.183 22 .25 x 45
FSIM-03 2.250 6-32 1.865 2.530 2.290 .123/.183 15 .25 x 45

Also Purchased

Related Products

Product Codes

  • Mfr Part No
    FSIM-03
  • MIL SPEC
    MIL-C-85528
  • ECCN
    EAR99
  • MIL SPEC
    MIL-C-85528
  • SCHEDULE B CODE
    7318160000
