G1122 GO/NO-GO Gage | GO 0.0720, NO-GO 0.0760

DANIELS MFG

Call For Pricing
Available to order
EDMO # G1122
MFR Part # G1122
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Daniels Manufacturing Corporation's crimp tools require consistent verification to ensure the precise quality of terminations is maintained. DMC designed easy-to-use Go/No-Go gages to verify tolerances and ensure our extensive line of qualified crimp tools are in specification. Gages can be designed in round, flat, stepped, or specialty configurations based on application and are compatible with indent or form crimp tools.

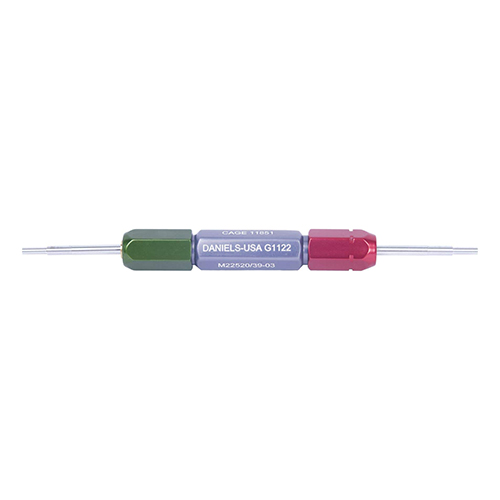

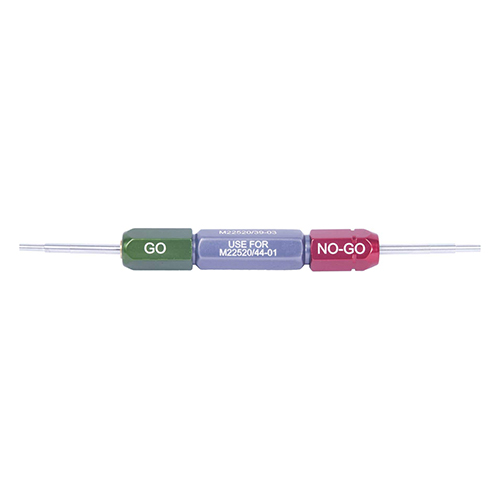

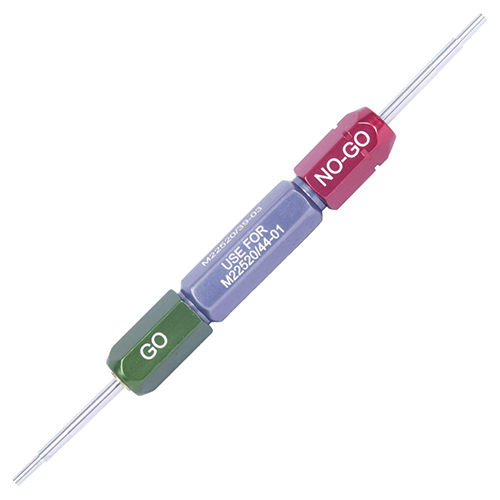

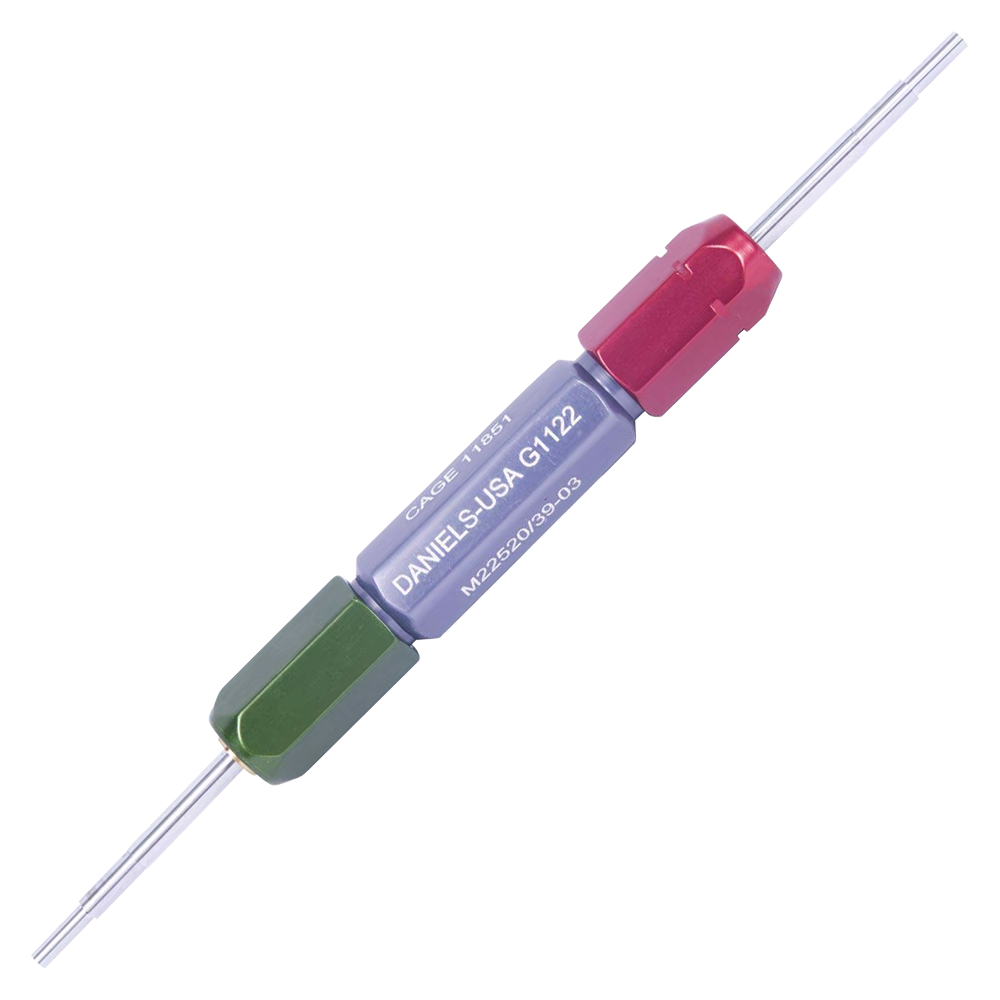

This go/no-go gauge (EDMO# G1122) is used with the GMT1090 General Purpose Hand Crimp Tool and has a gage range of 0.0720 (GO) to 0.0760 (NO-GO).

Features

  • Gage Tolerances: GO 0.0720 – NO-GO 0.0760
  • Used with the GMT1090 crimp tool
  • Qualified to M22520/39-03 and AS22520/3 standards

Specifications

  • Weight:
    0.131 lb
  • Length:
    2.5 in, approx. (handle)
  • Tolerance:
    GO: 0.0720 ±0.0001 NO-GO: 0.0760 ±0.0001

Related Products

Product Codes

  • Mfr Part No
    G1122
