MIL-SPEC Serrated Nylon Gromstrip | 0.128 – 0.192 inch Panel Thickness

MIL-SPEC Serrated Nylon Gromstrip | 0.128 – 0.192 inch Panel Thickness
MIL-SPEC Serrated Nylon Gromstrip | 0.128 – 0.192 inch Panel Thickness
MIL-SPEC Serrated Nylon Gromstrip | 0.128 – 0.192 inch Panel Thickness

ICO RALLY

EDMO#: GSNCM-4

MFR#: GSNCM-4 NATURAL

Call for Pricing

No Stock

Description

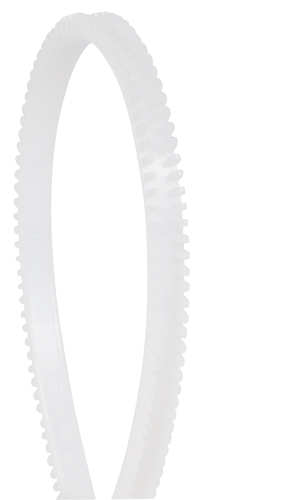

Gromstrip is a continuous length, extruded U-channel grommet that is used as a protective covering over sharp edges for added protection of wire and cable bundles. Gromstrip is easy to install into any hole, regardless of configuration — simply cut to the desired length and press into place. Minimal panel space is required for Gromstrip to snugly grip the surface and will protect any wires passing through against fraying, cutting, or abrasion.

This Nylon MIL-SPEC 21266 gromstrip (EDMO# GSNCM-4):

  • Fits panels from 0.128 – 0.192 inch thick
  • Nylon Gromstrip used where abrasion-resistant material is desired

Features

  • MIL-SPEC 21266 Gromstrip
  • Protects wires from sharp edges
  • Simply to install
  • Cut to desired length
  • Higher operating temperature and better dielectric constant than polyethylene

Specifications

Overall Width (dimension A):
0.325 in (8.26 mm)

Inside Width (dimension b):
0.195 in (4.95 mm)

Cushion (dimension C):
0.070 in (1.78 mm)

Depth (dimension D):
0.16 in (4.06 mm)

Panel Thickness:
0.128 – 0.192 in (3.25 – 4.88 mm)

Product Codes

Mfr Part No :

GSNCM-4 NATURAL

MIL SPEC :

MS21266

ECCN :

EAR99

MIL SPEC :

MS21266

SCHEDULE B CODE :

3926.90.9887
