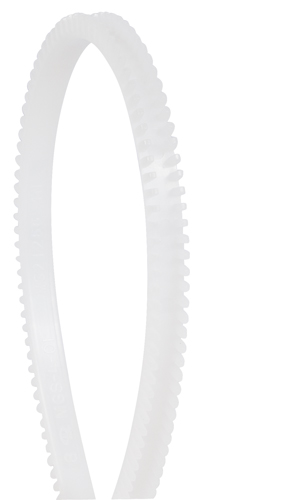

MIL-SPEC Serrated Nylon Gromstrip | 0.192 – 0.255 inch Panel Thickness

Product Description

Gromstrip is a continuous length, extruded U-channel grommet that is used as a protective covering over sharp edges for added protection of wire and cable bundles. Gromstrip is easy to install into any hole, regardless of configuration — simply cut to the desired length and press into place. Minimal panel space is required for Gromstrip to snugly grip the surface and will protect any wires passing through against fraying, cutting, or abrasion.

This Nylon MIL-SPEC 21266 gromstrip (EDMO# GSNCM-5):

• Fits panels from 0.192 – 0.255 inch thick
• Nylon Gromstrip used where abrasion-resistant material is desired

Specifications

• Overall Width (dimension A):
  0.385 in (9.78 mm)
• Inside Width (dimension b):
  0.260 in (6.60 mm)
• Cushion (dimension C):
  0.070 in (1.78 mm)
• Depth (dimension D):
  0.17 in (4.32 mm)
• Panel Thickness:
  0.192 – 0.255 in (4.88 – 6.48 mm)

Product Codes

• Mfr Part No
  GSNCM-5 NATURAL
• MIL SPEC
  MS21266
• ECCN
  1C008
• MIL SPEC
  MS21266
• SCHEDULE B CODE
  3926.90.9887
