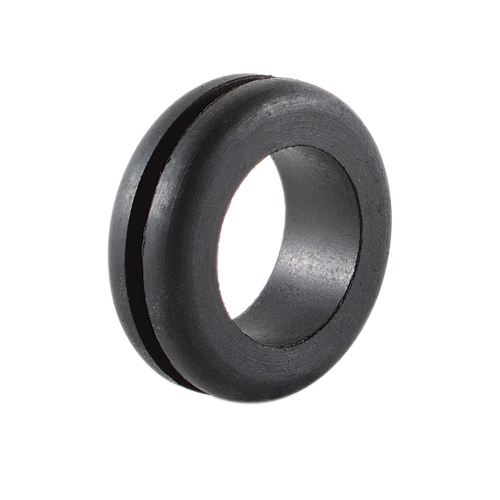

Vinyl Grommet | Fits 1/2-in Holes
ICO RALLY
EDMO#: GV-1/2
MFR#: GV-1/2
Description
GV Series Vinyl Grommets are inexpensive, flexible, and oil resistant. They feature a high dielectric strength and have excellent aging qualities.
This GV series vinyl grommet (EDMO# GV-1/2) fits into 1/2-inch panel holes.
Features
- Flexible, inexpensive, and resists oil
- High dielectric strength
- Excellent aging qualities
- Hardness Durometer: 60 ±5 Shore A
- Tensile Strength: 1400 psi
- Abrasive Resistance: Excellent
- Effect of Sunlight: Slight to None
- Hydro Carbon Solvent Resistance: Good
- Weak Acid Resistance: No Effect
- Burning Rate: Self Extinguishing
Specifications
Inside Diameter (Dimension A):
0.375 in (9.53 mm)
Panel Thickness (Dimension B):
0.063 in (1.60 mm)
Overall Diameter (Dimension C):
0.625 in (15.88 mm)
Overall Height (Dimension D):
0.250 in (6.35 mm)
Panel Hole Diameter (Dimension E):
0.500 in (12.70 mm)
Product Codes
Mfr Part No :
GV-1/2
ECCN :
EAR99
SCHEDULE B CODE :
3926.90.9887
