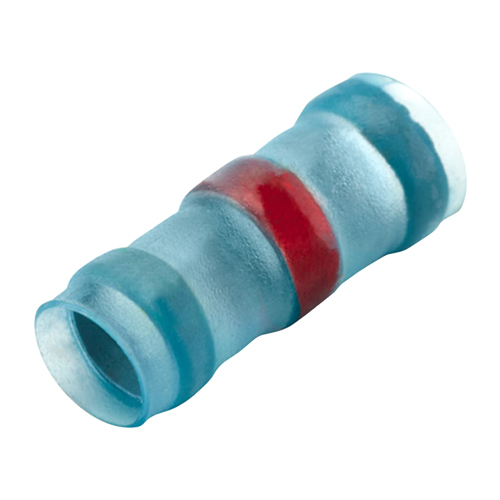

H-C High Temperature Solder Sleeve | 0.100 – 0.300 O.D., 150°C

Product Description

H-C-series high temperature solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

This H-C solder sleeve terminal (EDMO# H-C-5) fits wire diameters of 0.100 (øD4) and 0.300 (øD2). *see Datasheet

Specifications

• Operating Temperature:
  -55°C to 150°C
• Solder Melt Temperature:
  183°C
• Solder Type:
  Sn63 (63% tin, 37% lead)
• Temperature Indicating Paint (TI):
  Yes
• Jacket Type:
  Radiation Cross-Linked Modified Polyolefin
• Includes Lead Wire:
  No
• Includes Braid:
  No
• Environmental seals:
  Yes
• RoHS Compliant:
  No
• Flux
  RMA

Product Codes

• Mfr Part No
  STS H-C-5

Documentation

• STS-H-C series datasheet
