H-MB Solder Termination Sleeve | 0.105 – 0.145in, Nickel-Plated, 150°C

Product Description

H-MB series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

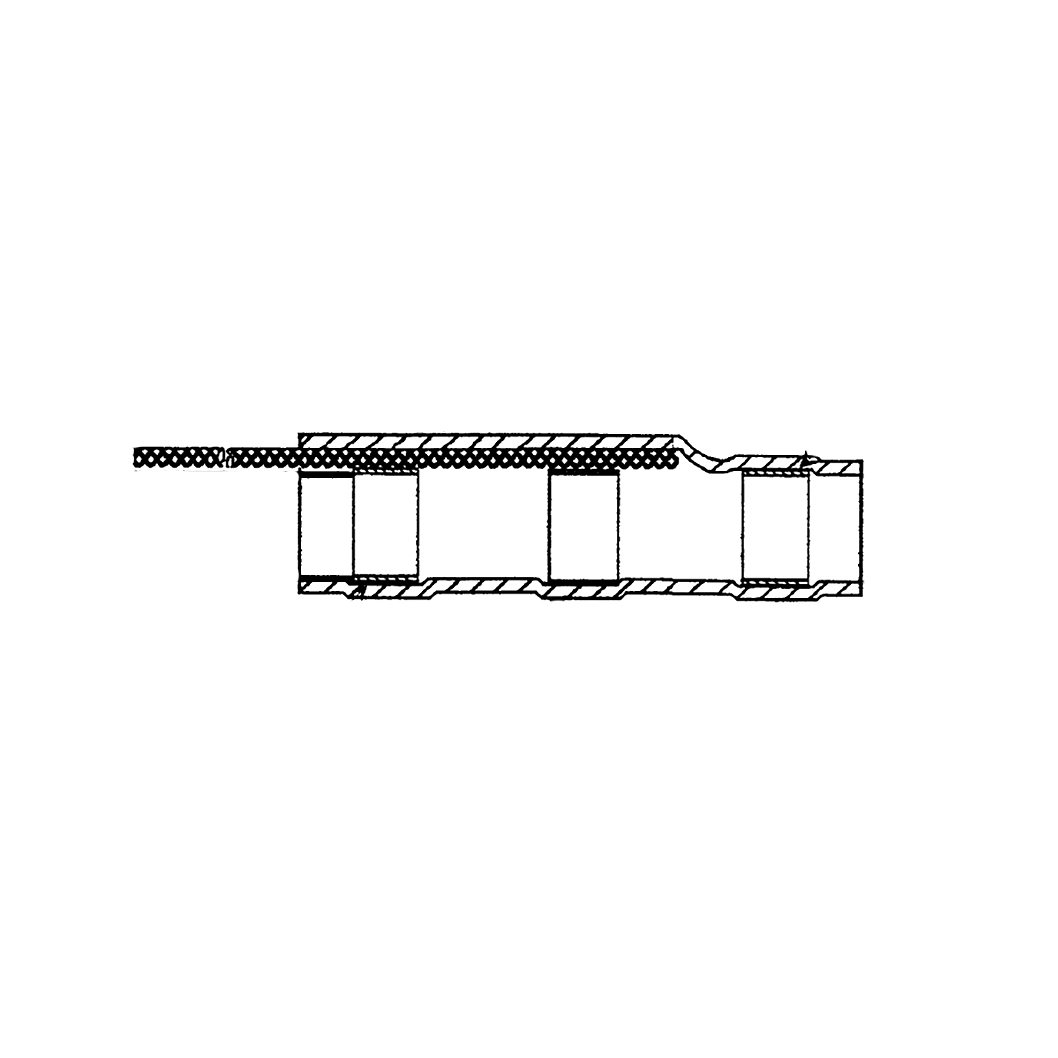

This H-MB solder sleeve terminal (EDMO# H-MB-206N) fits wire diameters of 0.030 (ØG) – 0.105 (ØH) inch. Includes, nickel-plated, six-inch braid. *see diagram

Specifications

• Cable Size:
  ØG–ØH: 0.030 – 0.105in in (see diagram)
• Operating Temperature:
  -55°C to 150°C
• Solder Melt Temperature:
  183°C
• Solder Type:
  Sn63 (63% tin ,37% lead)
• Temperature Indicating Paint (TI):
  yes
• Jacket Type:
  Radiation cross-linked, modified polyvinylidene per MIL-l-23053/8
• Lead Wire Include:
  No
• Braid Included:
  Yes
• Environmental Seals:
  Yes
• RoHS Compliant:
  No
• Flux:
  RMA

Product Codes

• Mfr Part No
  STS H-MB-206N
• SAE
  SAE-AS83519
