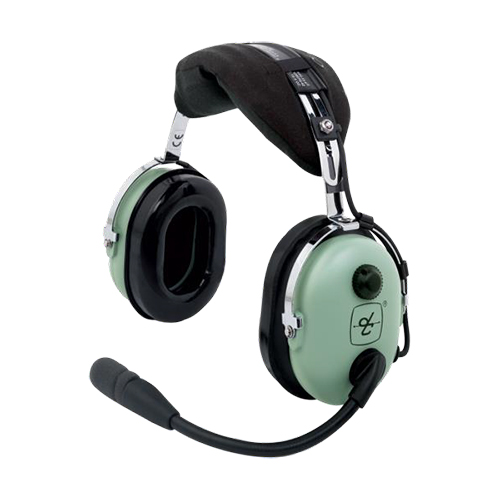

David Clark Aviation Headset | Youth, Straight Cord, Dual Plug, Flex Boom, M-7/A


DAVID CLARK COMPANY

Call For Pricing
Available to order
EDMO # H10-13Y
MFR Part # 40411G-04
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Passive noise-attenuating headsets designed for fixed wing aircraft provide extremely reliable performance and communication clarity. Designed for younger pilots, this small version of the H10-13.4 is upgradeable to the full sized version when needed.

Features

  • Version Includes:
  • Youth sized
  • Flex boom
  • M-7A electret mic
  • Dual ear
  • Over-the-head
  • 5ft Straight cord
  • Dual plug
  • Features:
  • Expanded, super-soft, double foam head pad
  • Larger, yet lighter, undercut Comfort Gel ear seals
  • Universal flex boom for perfect microphone placement
  • Exclusive M-7A, the most advanced noise- cancelling microphone available
  • Low-profile volume control knob with detent settings
  • Molded cord assembly made to exceptional pull and flex standards
  • Certified Noise Reduction Rating – 23 dB
  • A smaller version of the H10-13.4 for younger pilots. This model is upgradeable to the full
  • sized version when needed
  • Exceeds RTCA/DO-214 Standards
  • FAA TSO Approved C-57b, C58a

Specifications

  • Weight:
    16oz (without cable)
  • Ear coupling:
    Around-the-ear
  • Dome type:
    ABS
  • Hardware:
    Steel
  • Earphone plug:
    PJ-055 (.25” phone plug)
  • Microphone plug:
    PJ-068 (.206” phone plug)
  • Earphone type:
    Dynamic
  • Ear Impedance:
    150Ω (300 each; wired in parallel)
  • Ear frequency response:
    200-5,500 Hz
  • Microphone principle:
    M-7A Amplified Electret
  • Mic DC supply voltage:
    8-16V, not polarity sensitive

Product Codes

  • Mfr Part No
    40411G-04
  • ECCN
    5A991
  • SCHEDULE B CODE
    8518.30.2000
  • TSO
    C57b, C58a
