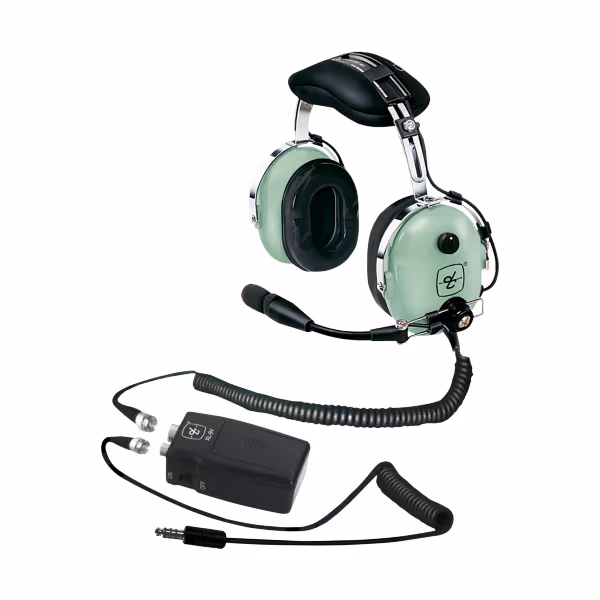

David Clark Helicopter Headset | ENC, Coil Cord, U-174/U Plug


DAVID CLARK COMPANY

Call For Pricing
Available to order
EDMO # H10-56HXL
MFR Part # 40614g-02
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The H10-56HXL is extremely effective at blocking out low-frequency sound associated with helicopters. Modular, battery-powered portability means the same headset can be used in a variety of helicopters. Built to withstand the rigors of commercial use in helicopter cockpits.

Features

  • Version Includes:
  • Flex wire boom
  • M-7/DC electret mic
  • Dual ear
  • Over-the-head
  • 5 ft coil cord
  • U-174/U plug
  • Features:
  • Extremely effective at blocking out low-frequency sound associated with helicopters
  • Battery Power Module – One 9 volt battery for up to 25 hours of operation
  • Super-soft head pad
  • Larger, yet lighter, undercut Comfort Gel ear seals
  • Pilot selectable Automatic Shut-Off feature
  • Coil Cord (5-foot extended) with a 10-pin quick release connector
  • Same headset can be used with optional panel mount (H10-56XP)
  • Dual volume controls let you adjust the level for each ear
  • Exclusive, patented flex/wire boom for easy, precise microphone placement
  • FAA TSO Approved C57A, C58a
  • NSN 5965-01-447-6430

Specifications

  • Weight:
    22oz (without cable)
  • Ear coupling:
    Around-the-ear
  • Dome type:
    ABS
  • Hardware:
    Steel
  • Earphone plug:
    U-174/U
  • Microphone plug:
    U-174/U
  • Earphone type:
    Dynamic (ENC)
  • Ear Impedance:
    Monaural,150Ω nominal, stereo, 300 ohms nominal per side
  • Ear frequency response:
    100 – 5,500 Hz
  • Microphone principle:
    M-7/DC Amplified Electret
  • Mic DC supply voltage:
    8-16V, not polarity sensitive

Related Products

Product Codes

  • Mfr Part No
    40614g-02
  • ECCN
    5A991
  • SCHEDULE B CODE
    8544.49.0000
  • TSO
    C57a, C58a
