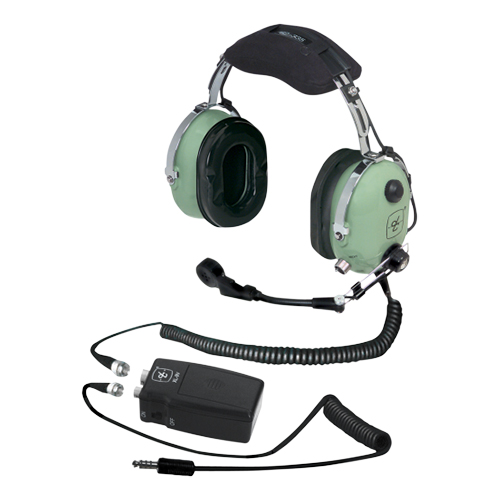

David Clark Aviation Headset | ENC, Dual Impedance, Coil Cord, U-174/U

DAVID CLARK COMPANY

Call For Pricing

Available to order

EDMO # H10-66XL

MFR Part # 40614G-05

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The H10 series headsets are designed to provide clear, reliable, mission-critical communications. David Clark air crew headsets are built to withstand the rigors of the military aircraft cockpit, while providing maximum comfort and performance to ensure the safety of military aviators. Dual impedance allows for civilian use.

Features

Version Includes:
M-101 mic
Hybrid flex/wire boom
Dual impedance
Dual ear
Over-the-head
5 ft coil cord
U-174/U plug
Features:
ENC technology for increased noise attenuation
High/Low-impedance select switch on dome matches headset to system impedance (military/civilian)
Soft foam-filled head pad for maximum comfort
Hybrid flex/wire boom with M-101 Dynamic Microphone (MIL-M-26542/2 USAF specifications)
Pilot selectable automatic-Shut Off feature included
5-foot extended coil cord with U-174/U plug

Specifications

Weight:

24 0z
Impedance:

Switchable
Earphone type:

Dynamic electronic noise-cancelling
Mic:

M-101 amplified dynamic
Earphone impedance:

150 ohms (300 Ohms each; wired in parallel)
Earphone sensitivity:

90 dB SPL on flat plate coupler, re 1mW input @ 1KHz
Earphone frequency response:

100 – 5,500 Hz
Earphone plug:

U-174/U
Boom type:

Flex
Noise-cancelling mic:

M-101 Amplified Dynamic or non-amplified
Mic impedance:

5 Ω +/- 20%
Mic sensitivity:

Non-amplified=.07 -.14 mV @ 1khz for 103dB SPL input, or Amplified=400mV±6dB into 150 ohm load @ 1kHz for 114dB SPL input
Mic frequency response:

300-3000Hz
Mic plug:

U-174/U
Cord:

5 ft coil
