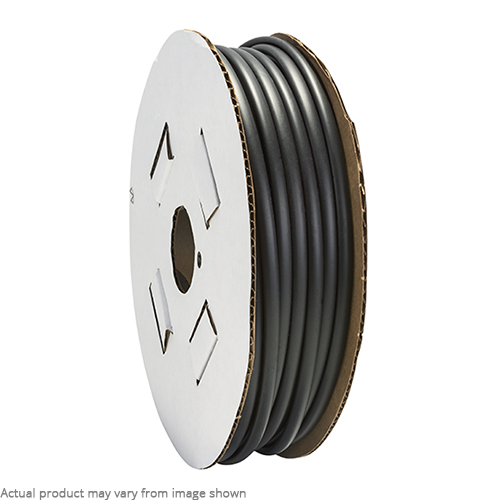

ProFIT H4X Polyolefin Heat Shrink Tubing | 1 1/2-inch diameter, 100 ft spool
ICO RALLY
EDMO#: H4XR-1 1/2
MFR#: H4X-1 1/2", H4X-#10
Description
ProFIT H4X heat shrink tubing is an over-expanded, general purpose, cross-linked, polyolefin tubing with a thin wall that has a four-times expansion ratio. It is developed for a wide range of applications where larger expansions are required. H4X tubing is perfect for repairing harness — eliminating the need to remove connections or large transitions. Also, H4X is flame retardant and compatible with most adhesives to provide a complete environmental seal.
This H4X heat shrink tubing (H4XR-1 1/2):
- 1 1/2-inch diameter
- 100 foot spool
Features
- Meets SAE-AMS-DTL-23053/5, Class 1 Over-expanded specifications
- Shrink ratio 4:1
- Shrink temperature of 250°F
Specifications
Minimum Expanded I.D.:
1.500 in (38.10 mm)
Maximum Recover I.D.:
0.375 in (9.53 mm)
Recovered wall thickness:
0.045 in (0.14 mm)
Operating Temperature:
-67°F to 275°F (-55°C to 135°C)
Shrink Ratio:
4:1
Shrink temperature:
250°F (121°C)
Recommended Heat Gun:
500°F (260°C)
Product Codes
Mfr Part No :
H4X-1 1/2", H4X-#10
