Product Description

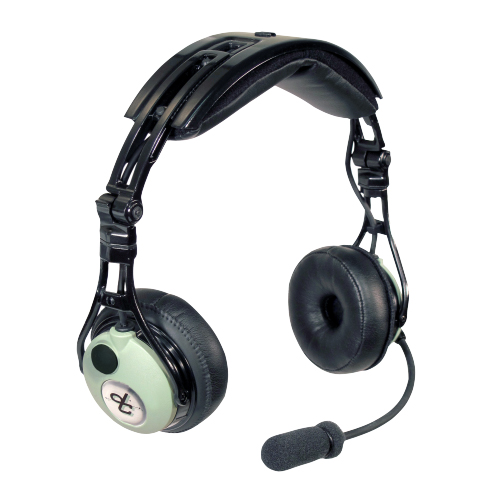

Series 6200 Radio Direct headsets connect directly to all the leading narrowband and legacy portable radios with no adapter required. These direct connect headsets provide outstanding communication clarity and are designed for ease of communication.

Features

  • Version Includes:
  • M-55 electret mic
  • PTT capable (requires U6210 inline switch, not included)
  • Flexible boom
  • Dual ear
  • Over-the-head
  • 9in. straight cord
  • Compatible with all C6200 radio cords
  • Features:
  • M-55 noise-canceling microphone for superlative speech clarity
  • Full flex mic boom, 280° rotating for perfect mic placement on left or right side
  • Dynamic earphones provide excellent reception quality
  • Leatherette head-pad and ear seals with slow-recovery ‘memory’ foam provides the ultimate in comfort
  • Metal alloy hardware designed for ultra-lightweight, yet rugged, reliable construction
  • Adjustable headband/suspension assembly and swivel hinge stirrups ensure a perfect, personalized fit

Specifications

  • Weight:
    8.4oz
  • Dome Type:
    Supra-aural (rest-on-ear)
  • Hardware:
    Lightweight alloy
  • Ear Impedance:
    100Ω, (±10%)
  • Ear Frequency Response:
    12-15kHz
  • Mic Sensitivity:
    6.2mV +6/-2 dB into 4.7k-ohm load re: 94dB SPL ¼” 1kHz
  • Mic Impedance:
    4.7k nominal
  • Mic Frequency Response:
    100Hz – 10kHz
  • Mic DC Supply:
    5-15VDC
  • Source Resistance:
    4.7k, nominal
  • Operating Temperature:
    -20°C to +55°C
  • Connection Type:
    Hirose
  • Connection Cable:
    0.155” (4-mm) OD shielded
  • Contact Pressure:
    ~0.6 lb. (2.7 N)
  • Cable Length:
    ~9” straight cord
