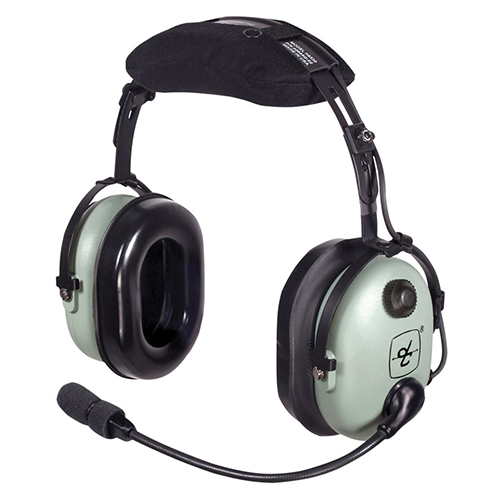

Model H8530 Pro Audio Headset | Straight Cord, Dynamic, No Connector

DAVID CLARK COMPANY

Call For Pricing

Available to order

EDMO # H8530

MFR Part # 40689G-02

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Model H8530 Pro Audio is a 'surround-the-ear' type headset with advanced comfort and technology features. Provides crisp, clear communication and excellent sound quality. Ideal for broadcast, sound studio and front-of-house pro audio applications.

Features

5-foot straight cord with loose leads (for your connector selection)
Dual volume controls on headset domes allow adjustable volume levels in each ear
Two, 60-ohm earphone elements, wired for separate channels
M-2H dynamic microphone, 150 ohms, ensures clear, crisp voice transmission
Full flex boom makes for precise, 'one-touch' microphone placement
Soft, foam head pad and undercut comfort-gel ear seals provide outstanding comfort during long hours of use
Adjustable, lock nut stirrup assembly for secure, personalized fit with minimal clamping pressure
Black matte, non-reflective hardware
Rugged, reliable construction without sacrificing personal comfort
Noise Reduction Rating (NRR): 23 dB

Specifications

Weight:

13.9 oz (396 g)
Ear Coupling:

Around-the-ear (Circumaural)
Dome Type:

Lightweight, ABS Composite
Contact Pressure:

1.5 lb (6.67 N)
Connector Type:

No Connector
Connection Cable:

5.67 ft straight cord with 3 twisted pairs shielded, unterminated (prepared leads)
Earphone Type:

Dynamic, moving coil
Earphone Impedance:

60 Ω ± 10% @ 1 kHz
Earphone Frequency Response:

20–8000 Hz
Earphone Sensitivity:

125 ± 3 dB SPL @ 1 kHz, Re: 1mW rms
Total Harmonic Distortion:
Certified NRR:

Passive noise attenuation rating of 23 dB
Microphone Principle:

Dynamic
Microphone Impedance:

150 Ω (nominal)
Microphone Sensitivity:

1.73mV rms (nominal), into 150 Ω load, Re: 104dB SPL 0.25 in @ 1kHz
Microphone Frequency Response:

200 Hz – 5kHz
Operating Temperature:

-20°C to 55°C
Storage Temperature:

-20°C to 70°C
