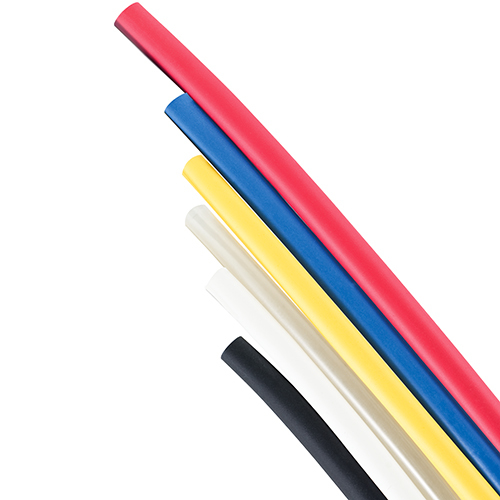

ProFIT® HIX Heat Shrink Tubing | White, 1 in, 4 ft

ProFIT® HIX Heat Shrink Tubing | White, 1 in, 4 ft

ICO RALLY

Call For Pricing
Available to order
EDMO # HIX-1WH
MFR Part # HIX-1WH
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

ProFIT® HIX general purpose polyolefin heat-shrinkable tubing is used for insulating, jacketing, bundling, and identifying wire and cables. HIX tubing is mechanically tough and resistant to abrasion and solvents while providing a longitudinal shrinkage less than 6%.

This HIX heat shrink tubing (EDMO# HIX-1WH) has a 1 inch diameter, colored white, and comes on a 4 foot stick.

Features

  • Application specifications: SAE-AMS-DTL-23053/5, Class 1 and 2
  • UL File Number: E52612 (VW-1 except Clear)
  • Operating Temperature: -67°F to 275°F (-55°C to 135°C)
  • Shrink Ratio: 2 to 1
  • Shrink Temperature: 250°F (121°C)
  • Color: white (other colors available)

Specifications

  • Diameter:
    1 in
  • Length:
    4 ft per stick
  • Minimum Expanded I.D.:
    1.000 in (25.40 mm)
  • Maximum Recovered I.D.:
    0.500 in (12.70 mm)
  • Recovered Wall Thickness:
    0.035 in (0.89 mm)

Related Products

Product Codes

  • Mfr Part No
    HIX-1WH
  • MIL SPEC
    M23053/5
  • ECCN
    EAR99
  • MIL SPEC
    M23053/5
  • SCHEDULE B CODE
    3902.30.0000
