ProFIT® HIX Heat Shrink Tubing | Yellow, 3/64 in, 4 ft

ProFIT® HIX Heat Shrink Tubing | Yellow, 3/64 in, 4 ft

ICO RALLY

Call For Pricing
Out of stock
EDMO # HIX-3/64YE
MFR Part # HIX-3/64YE
Need help placing an order? Call 800-235-3300 or Contact us

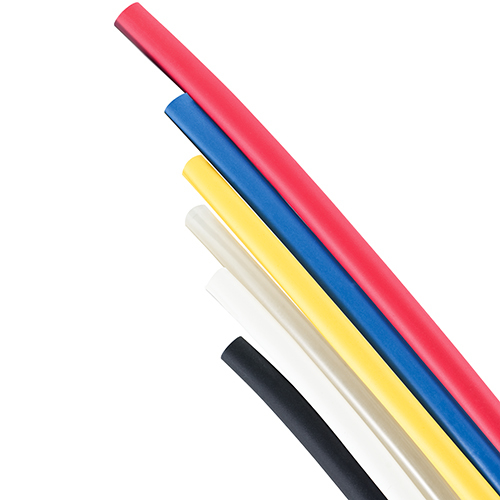

Product Description

ProFIT® HIX general purpose polyolefin heat-shrinkable tubing is used for insulating, jacketing, bundling, and identifying wire and cables. HIX tubing is mechanically tough and resistant to abrasion and solvents while providing a longitudinal shrinkage less than 6%.

This HIX heat shrink tubing (EDMO# HIX-3/64YE) has a 3/64 inch diameter, colored yellow, and comes on a 4 foot stick.

Features

  • Application specifications: SAE-AMS-DTL-23053/5, Class 1 and 2
  • UL File Number: E52612 (VW-1 except Clear)
  • Operating Temperature: -67°F to 275°F (-55°C to 135°C)
  • Shrink Ratio: 2 to 1
  • Shrink Temperature: 250°F (121°C)
  • Color: yellow (other colors available)

Specifications

  • Diameter:
    3/64 in
  • Length:
    4 ft per stick
  • Minimum Expanded I.D.:
    0.046 in (1.17 mm)
  • Maximum Recovered I.D.:
    0.023 in (0.58 mm)
  • Recovered Wall Thickness:
    0.016 in (0.40 mm)

Related Products

Product Codes

  • Mfr Part No
    HIX-3/64YE
  • MIL SPEC
    M23053/5
  • ECCN
    1C008
  • MIL SPEC
    M23053/5
  • SCHEDULE B CODE
    3902.30.0000
