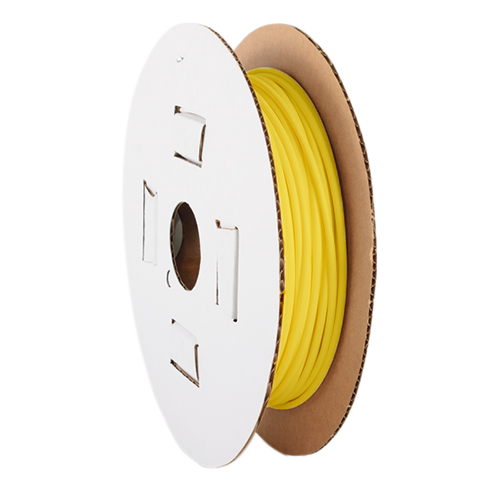

ProFIT® HIX Heat Shrink Tubing | Yellow, 3/32 in, 100 ft

Product Description

ProFIT® HIX general purpose polyolefin heat-shrinkable tubing is used for insulating, jacketing, bundling, and identifying wire and cables. HIX tubing is mechanically tough and resistant to abrasion and solvents while providing a longitudinal shrinkage less than 6%.

This HIX heat shrink tubing (EDMO# HIXR-3/32Y) has a 3/32 inch diameter, colored yellow, and comes on a 100 foot roll.

Specifications

• Diameter:
  3/32 in
• Length:
  100 ft roll
• Minimum Expanded I.D.:
  0.093 in (2.36 mm)
• Maximum Recovered I.D.:
  0.046 in (1.17 mm)
• Recovered Wall Thickness:
  0.020 in (0.50 mm)
• Operating Temperature:
  -67°F to 275°F (-55°C to 135°C)
• Shrink Ratio:
  2 to 1
• Shrink Temperature:
  250°F (121°C)
• Color:
  Yellow (other colors available)
• Application Specifications:
  SAE-AMS-DTL-23053/5, Class 1 and 2
• UL File Number:
  E52612 (VW-1 except Clear)

Product Codes

• Mfr Part No
  HIX-3/32YE
• SCHEDULE B CODE
  3902.30.0000
