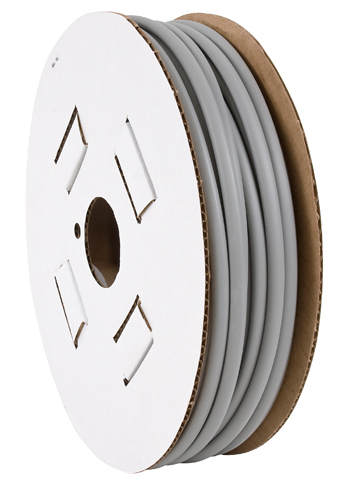

ProFIT® HLT Polyolefin Heat Shrink | 1/8-in, Gray

ProFIT® HLT Polyolefin Heat Shrink | 1/8-in, Gray

ICO RALLY

Call For Pricing
Available to order
EDMO # HLT-1/8
MFR Part # HLT-1/8
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

ProFIT® HLT Polyolefin Heat Shrinkable Tubing is extremely flexible with its thin-wall construction. HLT is a highly reliable, general purpose tubing made from flame-retardant polyolefin and is used for insulation, identification, strain relief, wire bundling, and color coding.

This HLT Polyolefin tubing (EDMO# HLT-1/8):

  • 1/8 inch expanded I.D.
  • Color gray
  • 100 foot spool

Features

  • Applicable Specifications: SAE-AMS-DTL-23053/5, Class 1 & 3
  • UL/CUL File Number: E52612 (VW-1)
  • Operating Temperature: -67°F (-55°C) to 275°F (135°C)
  • Range: Shrink Ratio: 2:1
  • Shrink Temperature: 176°F (80°C)
  • Recommended Heat Gun: 500°F (260°C)

Specifications

  • Minimum Expanded I.D.:
    0.125 in (3.18 mm)
  • Maximum Recovered I.D.:
    0.063 in (1.60 mm)
  • Recovered Wall Thickness:
    0.020 in (0.50 mm)

Related Products

Product Codes

  • Mfr Part No
    HLT-1/8
  • MIL SPEC
    m23053/5-104-8
  • ECCN
    1C008
  • MIL SPEC
    m23053/5-104-8
  • SAE
    SAE-AMS-DTL-23053/5,CLASS 1 & 3
  • SCHEDULE B CODE
    3902.30.0000
  • UL
    E52612 (VW-1)
